PANASONIC - PT-DZ6710

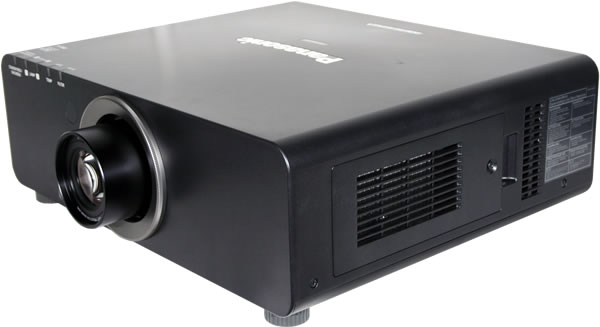

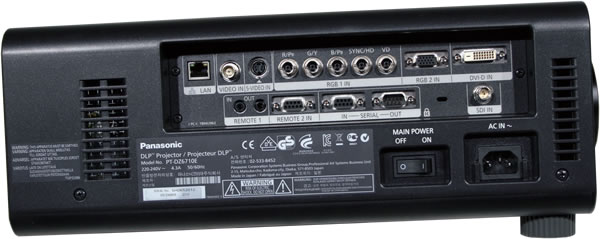

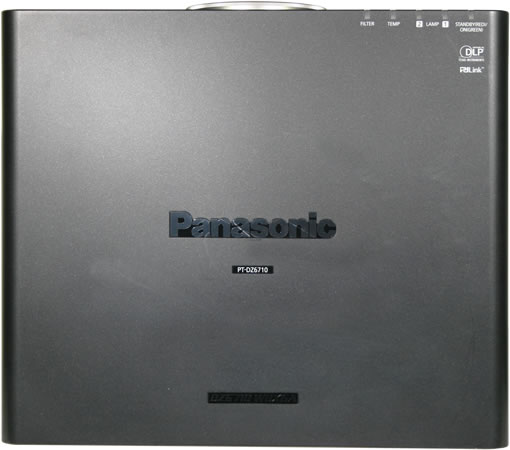

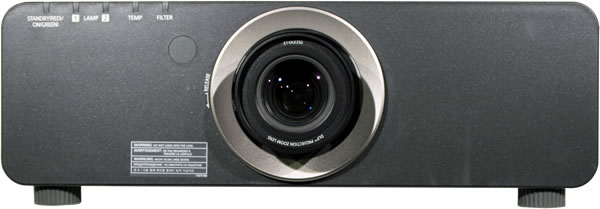

Main Unit

• Power supply Europe :220–240 V AC, 50/60 Hz
• Power consumption Europe :800 W (960 VA) (Standby mode eco*1: 0.3 W, Standby mode normal: 9 W. Both with fan stopped.)
• DLP™ chip: Panel size : 0.67˝ diagonal (16:10 aspect ratio) / Display method: DLP™ chip x 1, DLP™ system / Pixels: 2,304,000 (1,920 x 1,200) x 1, total of 2,304,000 pixels /
• Lens: Powered zoom/focus lenses (1.8 – 2.4:1), F 1.7– 2.0, f 26.8 –35.7 mm
• Lamp: 300 W UHM lamps (x 2) (dual lamp system)
• Screen size: 50– 600 inches (50– 200 inches with the ET-DLE055), 16:10 aspect ratio
• Brightness*2: 6,000 lumens (dual lamp, high power mode)
• Center-to-corner uniformity*2: 90%
• Contrast*2:2,000:1 (full on/full off, contrast mode: high, brightness: 3,000 lumens) / 1,000:1 (full on/full off, contrast mode: normal)
• Resolution: 1,920 x 1,200 pixels
• Optical axis shift: Vertical: +50% (powered), horizontal: ±10% (powered)
• Keystone correction range: Vertical: ±40° (±30° with the ET-DLE055)
• Installation: Ceiling/floor, front/rear
• Power cord length: 3.0 m
• Cabinet materials: Molded plastic
• Operating temperature: 0°–45°C (32°–113°F)
• Operating humidity: 20%–80% (no condensation)

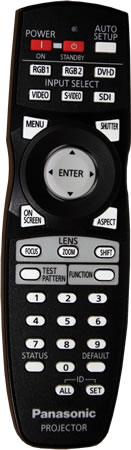

Remote Control Unit

• Power supply: 3 V DC (AA battery x 2)
• Operation range*7: Approx. 30 m (98´5˝) when operated from directly signal receptor
• Dimensions (W x H x D): 51 x 176 x 23 mm
• Weight: 134 g (including batteries)

Supplied Accessories

• Power cord
• Wireless/wired remote control unit
• Batteries for remote control (x 2)
• Wire rope

*1 In Standby mode eco, LAN-based network functions such as the standby ON function will not operate.

*2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.

*3 The HD/SYNC and VD inputs do not accept the tri-level sync signal.

*4 WUXGA resolution is supported only when the signals are compliant with VESA CVT-RB (Coordinated Video Timing-Reduced Blanking).

*5 With legs at shortest position.

*6 Including the supplied lens.

*7 Operation range differs depending on environments.
