KRAMER - VS-311H
Sélécteur auto.3×1 HDMI, audio stéréo & S/PDIF
Informations
- Codart : VS-311H
Propriétés techniques

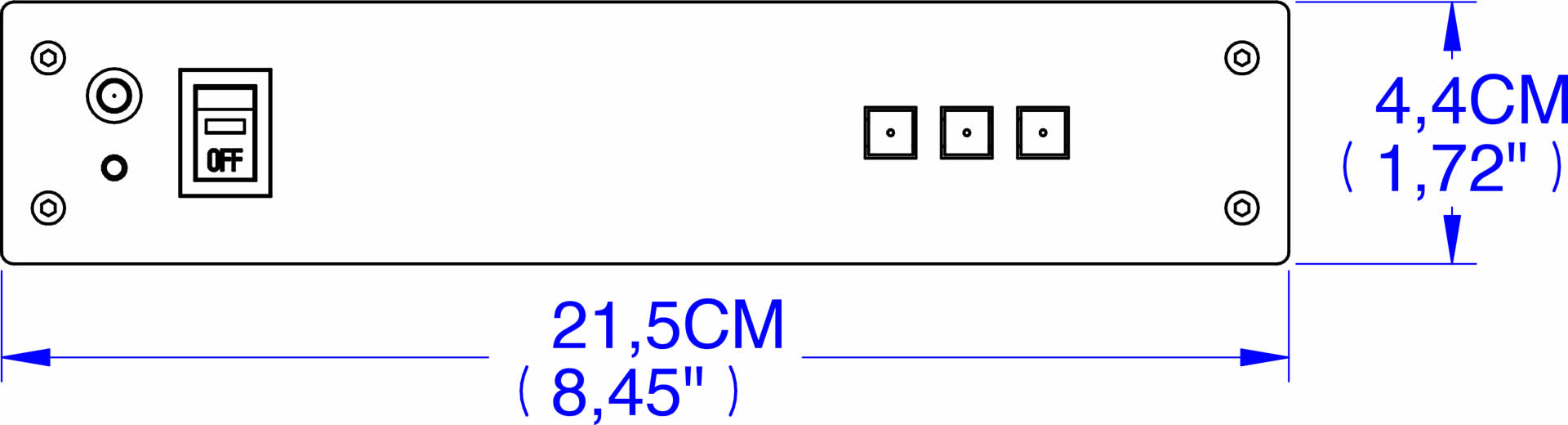

- Dimensions unitaires : 216 x 161 x 44 mm
- Poids unitaire : 1,2 kg
- Dimensions en flight-case (X1) : … x … x … cm
- Poids en flight-case (X1) : … kg
Documents à télécharger
Détails produit
The VS-311H is a high-performance switcher for HDMI video and balanced, unbalanced and S/PDIF audio signals. When configured as a standby switcher, it switches to a selectable secondary input upon loss of the primary input.
QUICK FACTS
- Max. Data Rate − 6.75Gbps (2.25Gbps per graphic channel)
- HDTV Compatible.
- HDCP & HDMI Compliant.
- Automatic Standby Switching
- Audio – U/D/E
- Flexible Control Options – Automatic (standby), RS−232, Ethernet, contact closure & IR (included).
- Input Priority – Selectable via DIP−switches.
- Desktop Size – Compact size. 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−1 adapter.

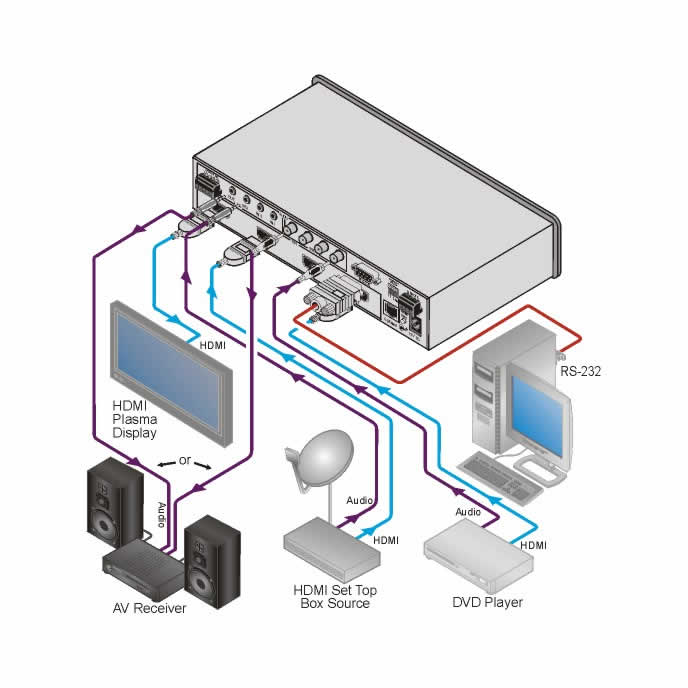

Applications :
Home theater, presentation and multimedia applications.
Rental and staging.

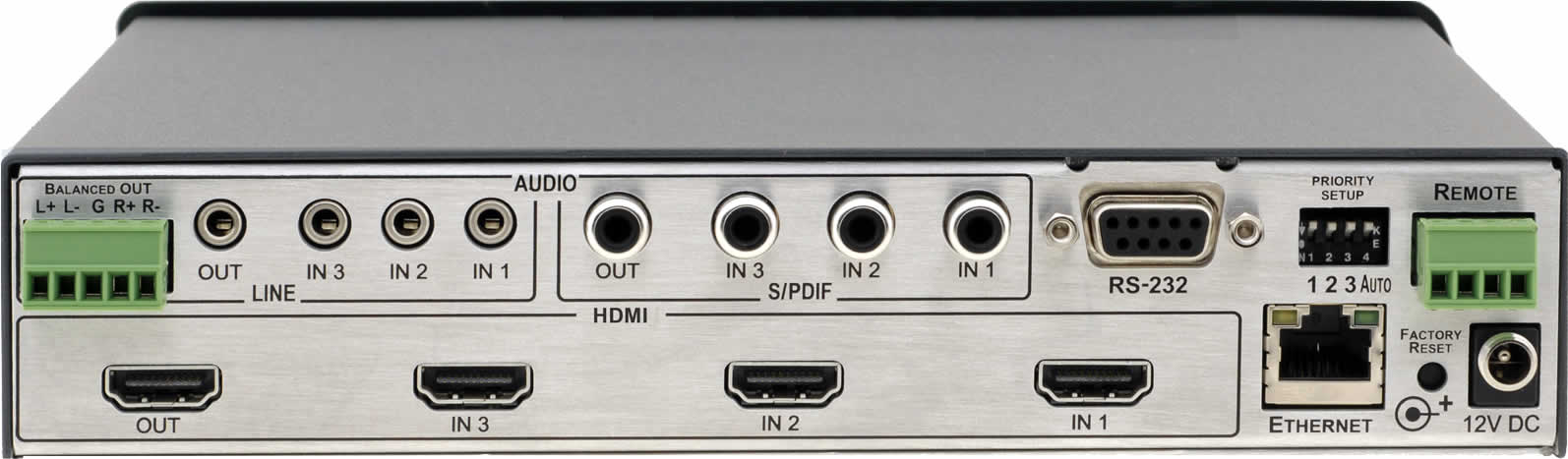

INPUTS:
- 3 HDMI connectors, 3 S/PDIF digital audio on RCA connectors, 3 unbalanced stereo audio +4dBu on 3.5mm mini jacks.
OUTPUTS:
- 1 HDMI connector, 1 S/PDIF digital audio on an RCA connector, 1 unbalanced stereo audio +4dBu on a 3.5mm mini jack, 1 balanced stereo audio on a 5−pin detachable terminal block.
DATA RATE:
- 6.75Gbps (2.25Gbps per graphic channel).
POWER CONSUMPTION:
- 12V DC, 380mA.
CONTROLS:
- Front panel buttons, infrared remote control transmitter, RS−232, Ethernet.
