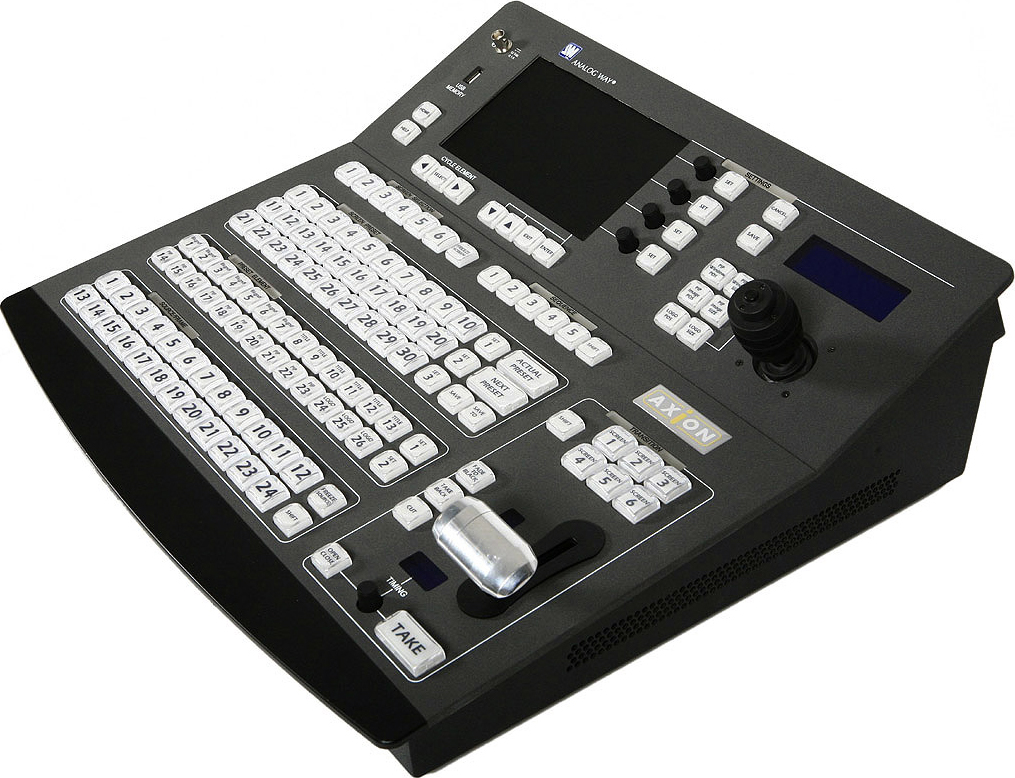

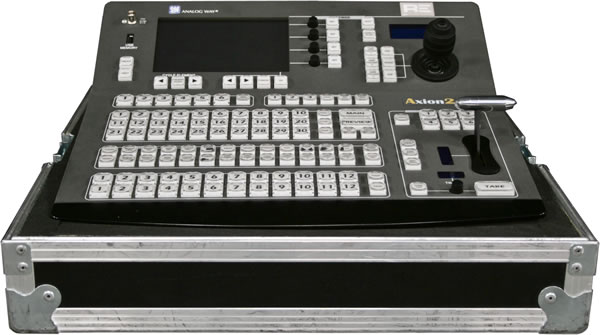

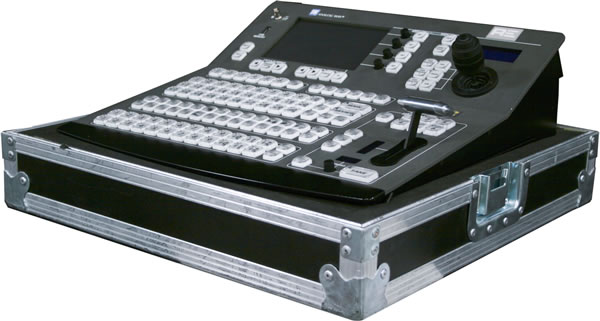

ANALOG WAY - Axion 2 ARC200
Mélangeur informatique et vidéo
Informations
- Codart : AXION2
Propriétés techniques
- Dimensions unitaires : 440 x 450 x 180 mm
- Poids unitaire : 9 kg
- Consommation électrique : 100 W

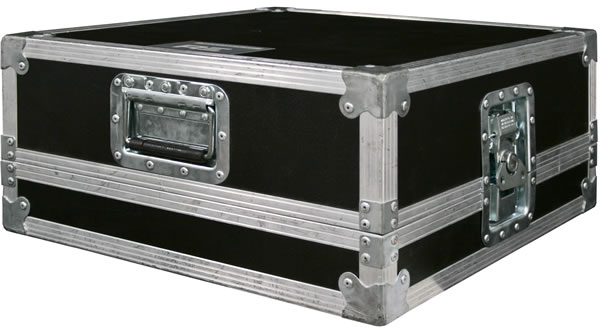

- Dimensions en flight-case (X1) : 51 x 50 x 24.5 cm
- Poids en flight-case (X1) : 17 kg
Documents à télécharger
Détails produit
ARC200 en 6 points
- New User-friendly Interface Remote Control
- Control of several Switchers on 6 independant screens
- Sequences Mode
- Off-Line Programming Mode
- Large 16/9 TFT color touch screen for preview of all configurations
- Snap function for easy settings of the layers
Spécifications Techniques
User Controls
- TFT touch screen, 7 ‘‘ (18 cm)
- Buttons for direct access to inputs
- Buttons for direct access to effects
- User preset buttons
- Take, Freeze, Main and Preview selection
- T-Bar for smooth manually controlled transitions
- Joystick for easy and fast set up of image or effect parameters

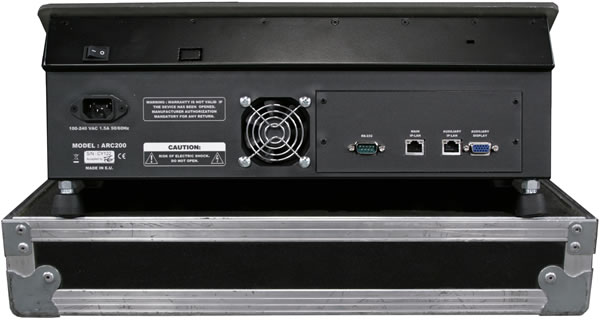

Connectors
- RJ45 for TCP/IP Ethernet connection
- USB port
- Auxiliary VGA
- BNC for desk light
Power Supply
- Internal, universal, automatic 100-240 VAC; 50/60 Hz (100W) (UL,
- CSA, GS, CE) On/Off power switch
