PANASONIC - AW-RP120

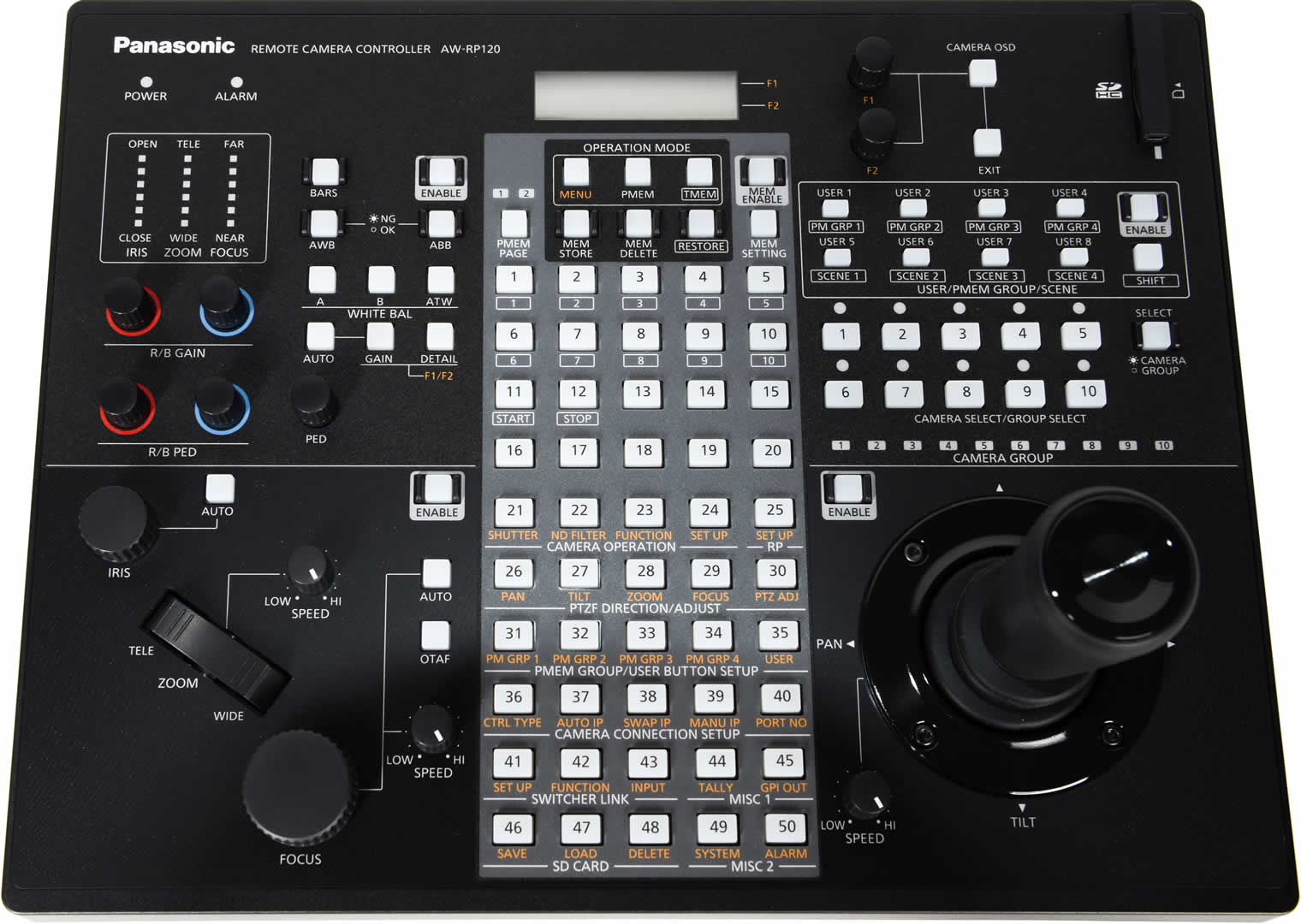

Newly designed control panel
Smooth Pan/Tilt Control with new joystick
Preset / Tracing memory functions
Color image adjustment function
Flexible System Design by using IP connection and control
Storage Setting to SD card

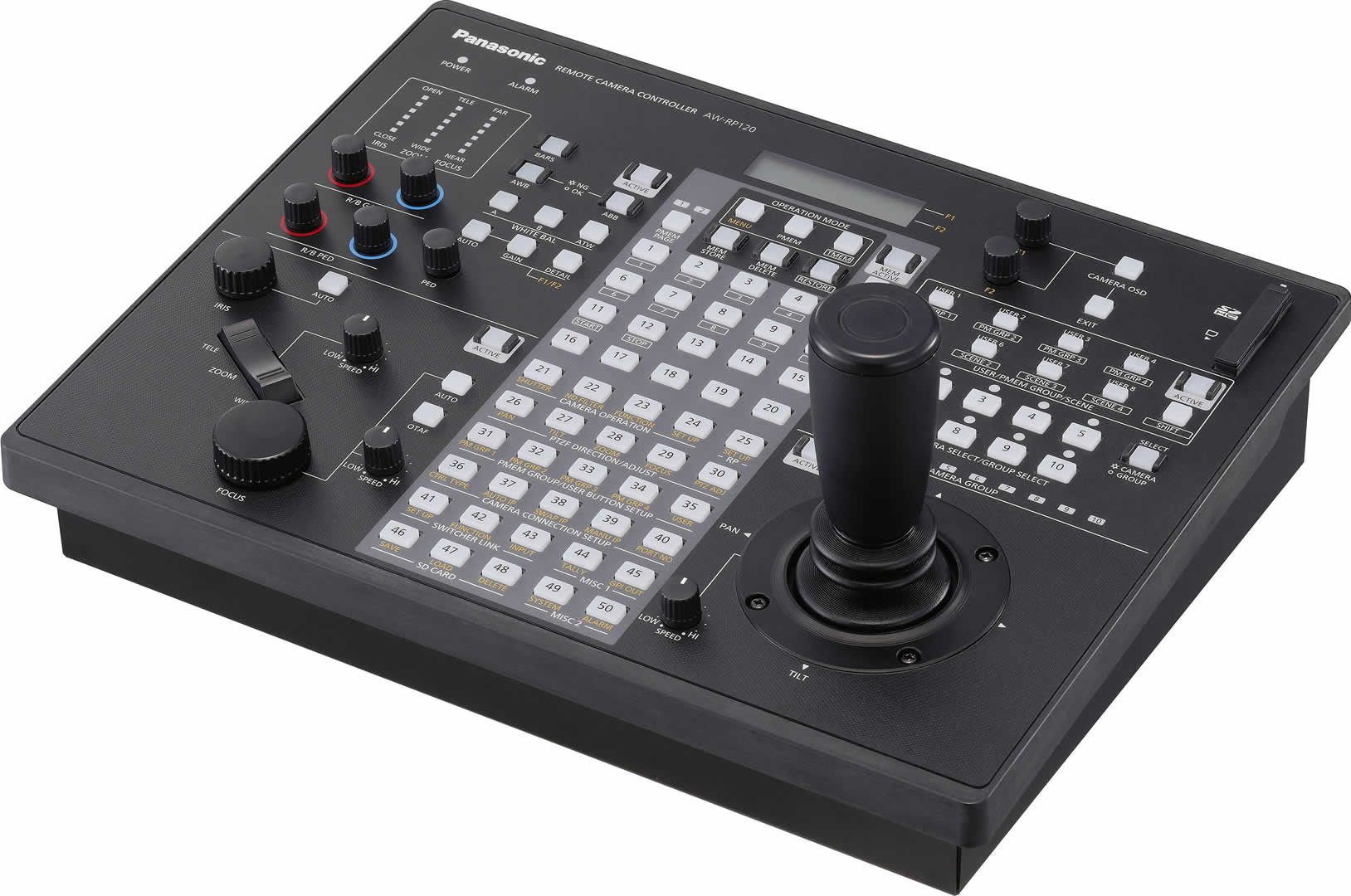

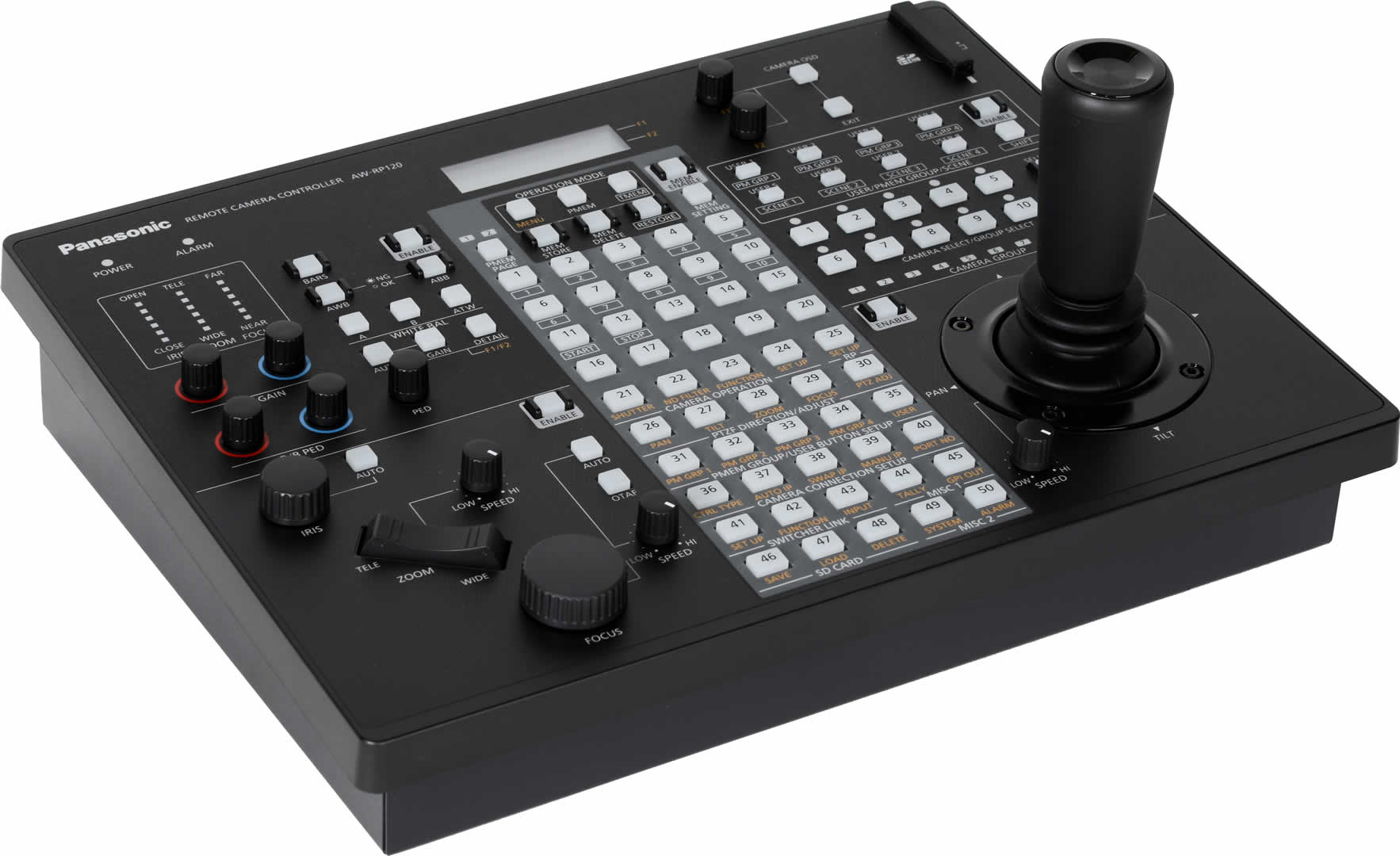

The AW-RP120G Remote Camera Controller supports a variety of Panasonic remote camera systems. IP connection allows a large-scale, flexible, and simple system configuration for controlling up to 100 remote cameras and the simultaneous use of multiple controllers. A new joystick enables high response pan and tilt operation, and a newly designed control panel adds color adjustment dials. A preset memory with a new batch recall function and tracing memory save labor by allowing single-person operation. Equipped with Paint and other camera adjustment functions, the AW-RP120G meets a wide range of high-end needs. It is the ideal all-in-one controller for many applications such as event, conference hall, public facility, wedding and broadcasting use.N.B. The AW-RP120 is not supplied with a power adapter, which must be bought seperately.The AW-RP120 full-size remote camera system controller has the capability to control cameras via both IP and serial connections to support the company’s expanding line-up of remote camera systems.The cost-effective RP120 offers advanced functions including Group Presets for rapid, easy scene changes, Tracing Memories for storage and recall of complex operations, SD Memory Card memory storage, and direct panel control of gain, pedestal, and detail settings. With an easy-to-use control layout and the most powerful feature set of any Panasonic controller, the RP120 addresses a diverse range of applications in broadcasting, sports, Houses of Worship, education, rental/staging, corporate and government.The RP120 delivers control of up to 100 Panasonic cameras via IP or five via RS-422 serial connections. Compatible cameras include the AW-HE50H/S, AW-HE60H/S, AW-HE120, AW-HE100 and AW-HE2 HD integrated PTZ cameras; plus the AK-HC1500, AK-HC1800, AW-HE870, and many other convertible cameras when used with appropriate pan/tilt heads.The RP120 supports flexible system configurations, with Group Presets, Scene Files, and up to 100 presets for up to 100 remote cameras. Selectable automatic IP address allocation further simplifies the commissioning of large-scale systems. Any one of five RP120 controllers on the network can select and control any compatible IP-controlled camera. An RS-232C port enables external control for systems employing appropriately programmed PC, Crestron, AMX, and other 3rd party controllers. Panasonic’s compact AW-HS50 switcher can also be linked to the controller via IP connection to permit a streamlined production workflowThe RP120’s control panel features a large pan/tilt joystick, seesaw zoom lever, iris dial, and manual focus dial with One-Touch Autofocus. A dedicated speed adjustment dial is provided for each of the pan/tilt/zoom and focus functions. Precise camera moves and scene operations can be memorized and recalled via the unit’s Tracing Memory. Up to 10 Tracing Memory “scripts” items can be stored for each camera. In addition, up to 100 standard presets, including pan, tilt, zoom position, focus, iris and white balance settings, can be quickly stored and recalled for each camera, greatly simplifying operation in large or complex venues. By creating up to four Groups Presets (up to 10 cameras each) multiple camera angles and settings can be retrieved in a single batch, facilitating one-touch control of rapid scene changes.The remote controller permits direct adjustment of a camera’s Gain, Shutter, Detail, AWB, ABB, Master Pedestal, R/B Pedestal and R/B Gain. Other menu functions of compatible Panasonic cameras can be also controlled using the RP120. Its LCD panel facilitates menu operation as well as dedicated zoom, focus and iris indicator display. Various functions can also be allocated to eight User Buttons for one-touch control. Scene files can be utilized for one-touch switching of remote camera shooting modes, and settings can be stored on an SD Memory Card for backup and cloning setups to other controllers.The RP120 has a simple, ergonomic design for easy operation in diverse settings, but is powerful enough to satisfy high-level staging and production needs. The unit measures 13-1/2″ W x 3-1/16″ D x 10-17/16″ H and weighs just under seven pounds. Features?

Full size, precision joystick for smooth control of camera moves
Preset Groups for easy, rapid scene changes (4 groups of up to 10 cameras)
Separate Speed Shift Dials for Pan-Tilt/Zoom/Focus
Direct panel controls for R/B Gain/Ped, Master Pedestal, Gain, Detail
SD Card Storage for backup and recall of settings
Tracing Memory for complex camera moves (includes SD card storage with IP cameras)
10 Camera Direct Panel Selection Buttons
5 cameras via RS422
Up to 100 cameras via IP (10 groups of 10)
SW-Link via IP with HS50 switcher, plus external control of RP120 via serial – for simpler workflow
Power Supply: DC 12 V
Power Consumption: 8 W

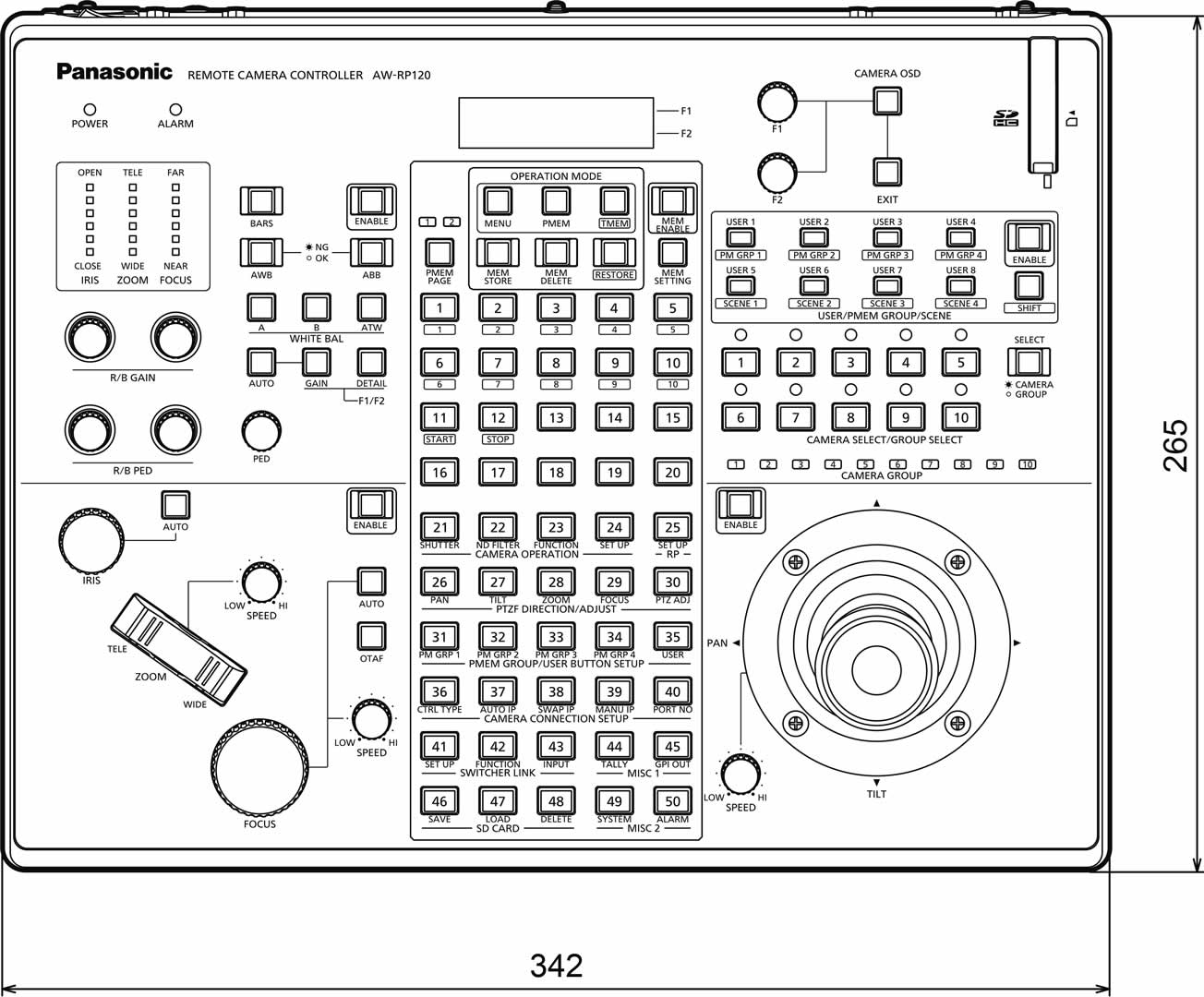

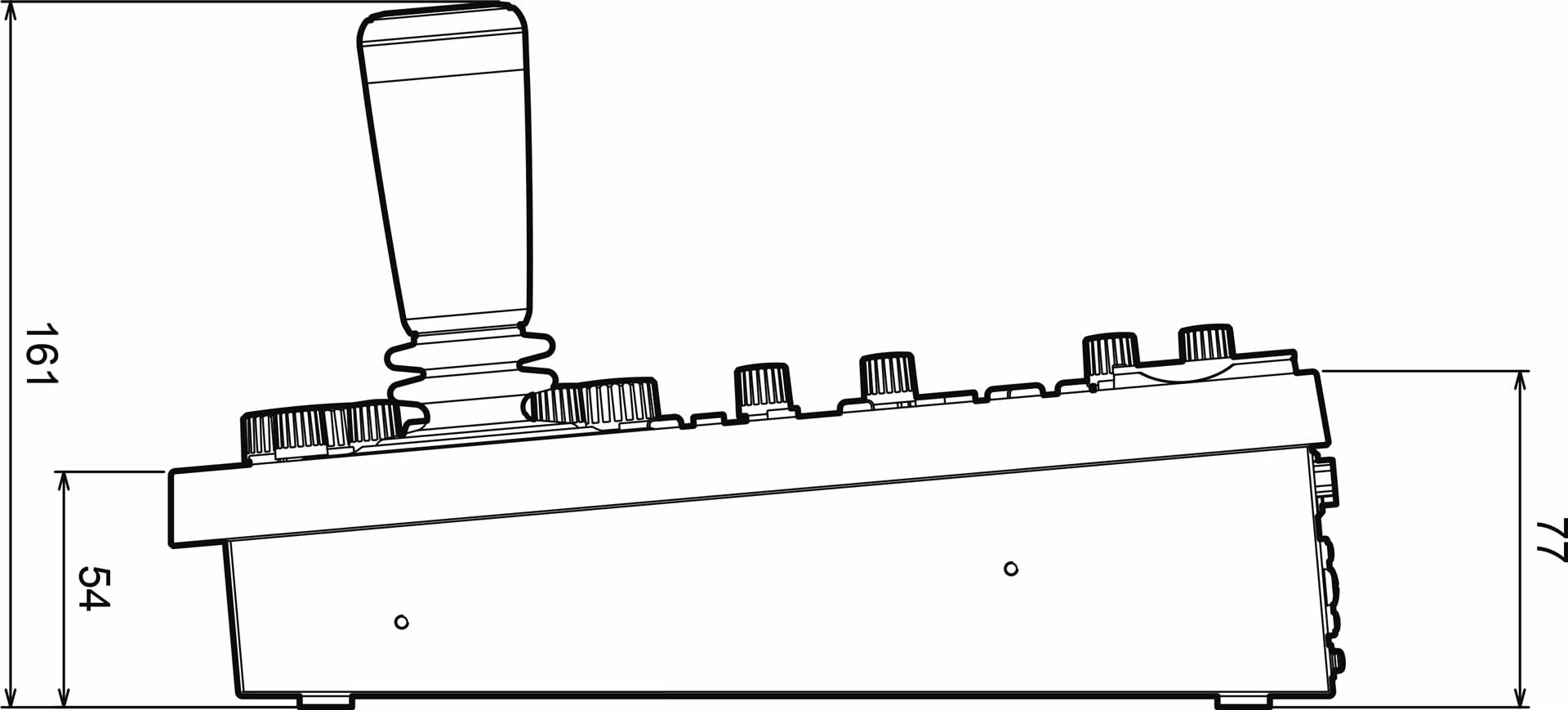

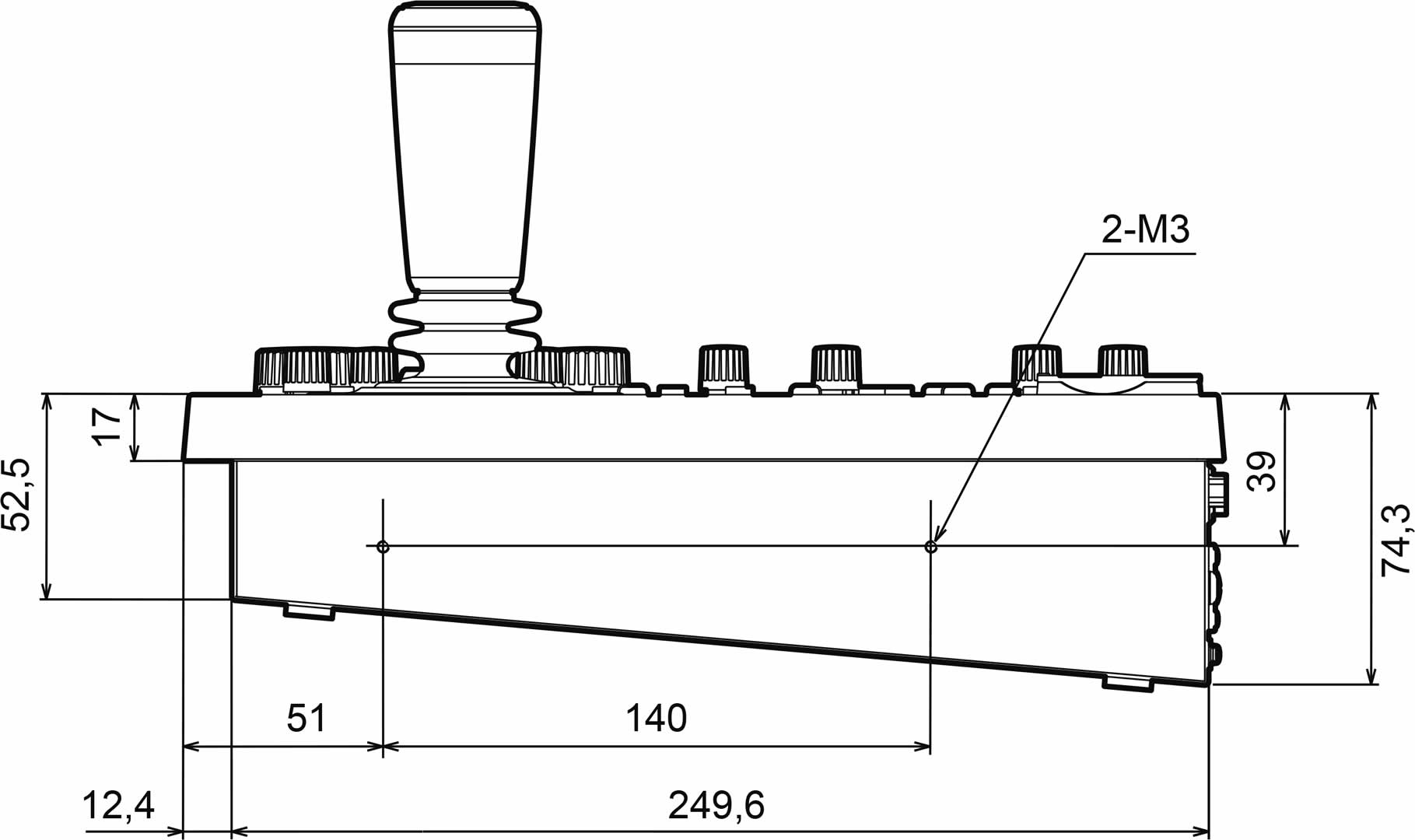

excluding protrusions

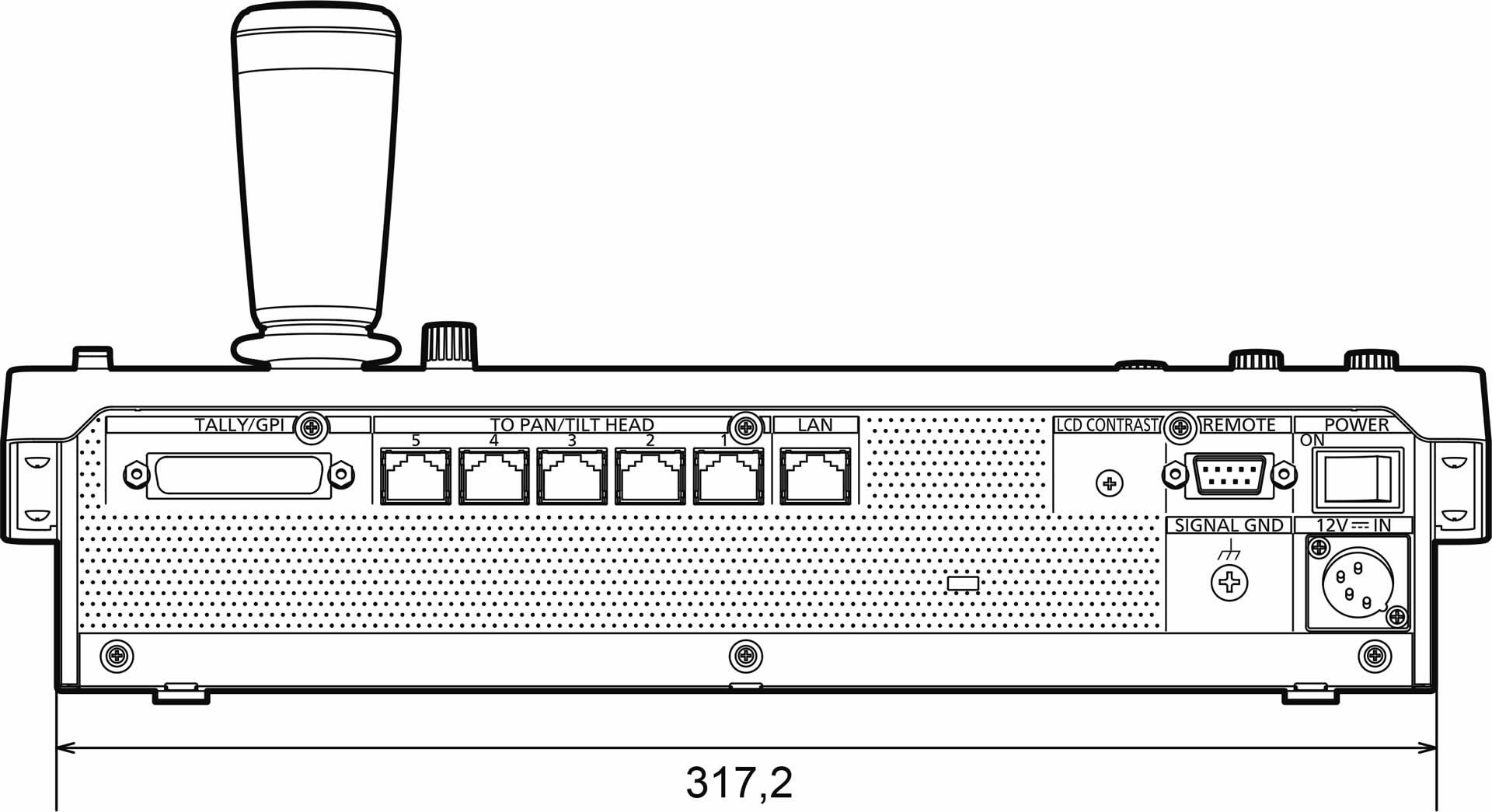

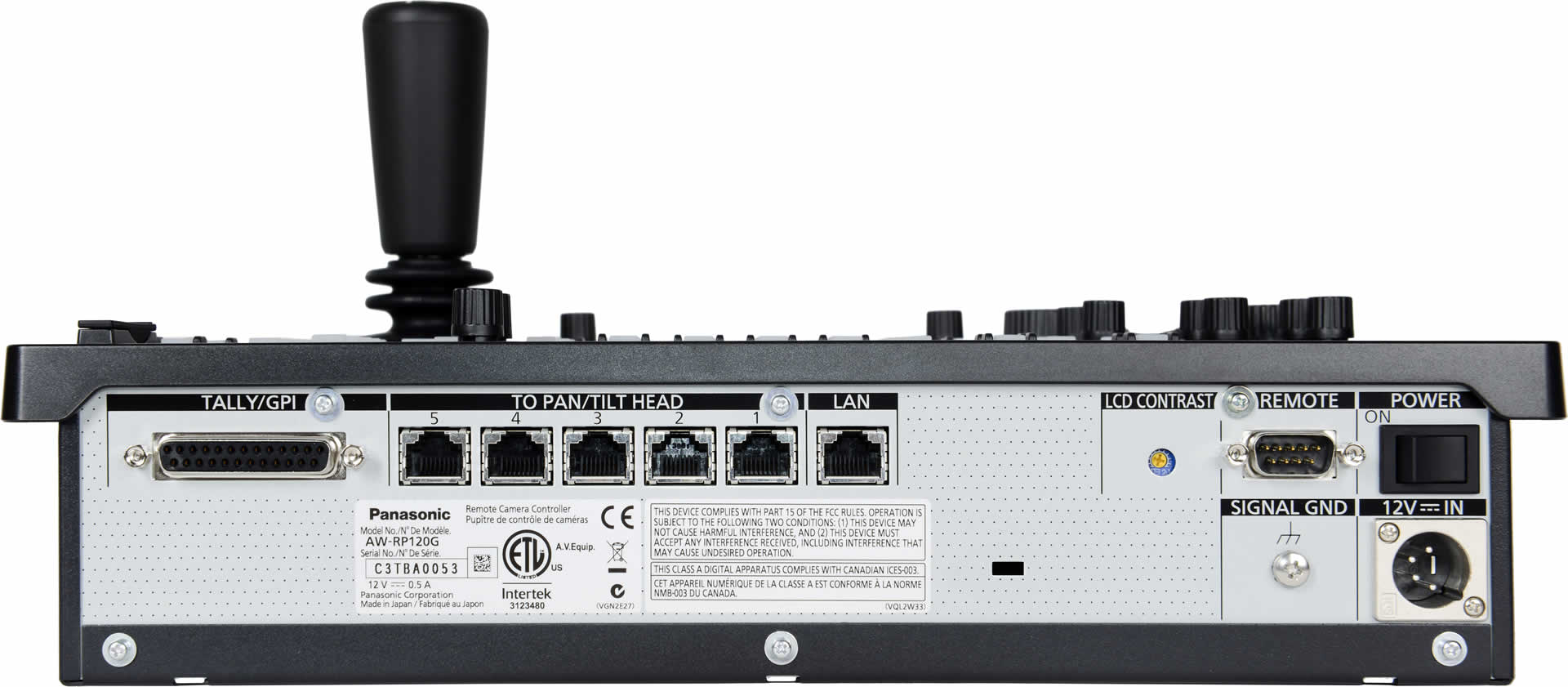

Connectors:
DC 12 V IN (XLR 4-pin)
LAN (RJ-45) 10BASE-T/100BASE-TX, to control remote cameras
SERIAL (RJ-45) RS-422, to control remote cameras x 5
TALLY/GPI (D-sub 25-pin)
REMOTE (D-sub 9-pin) RS-232C, for external control
