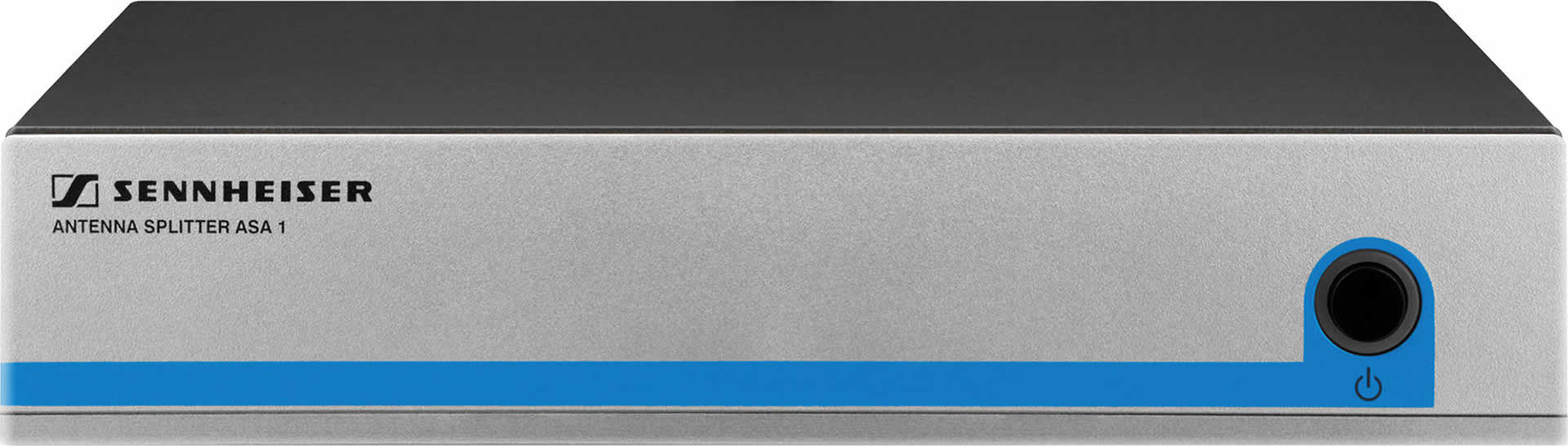

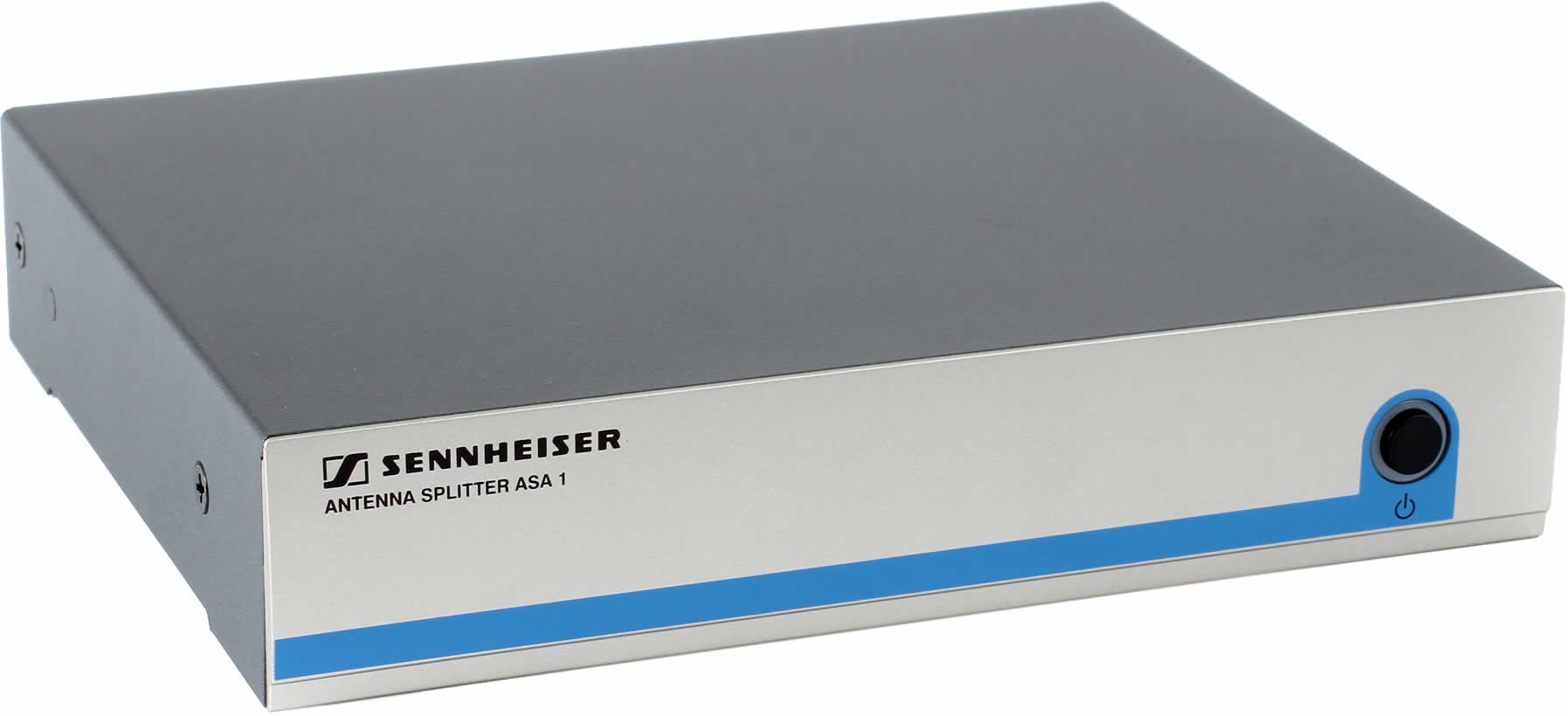

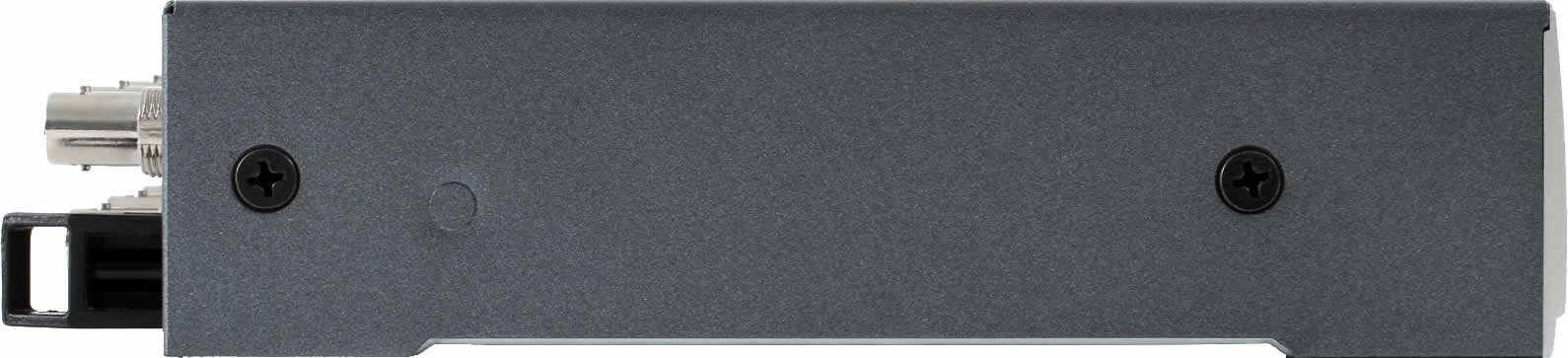

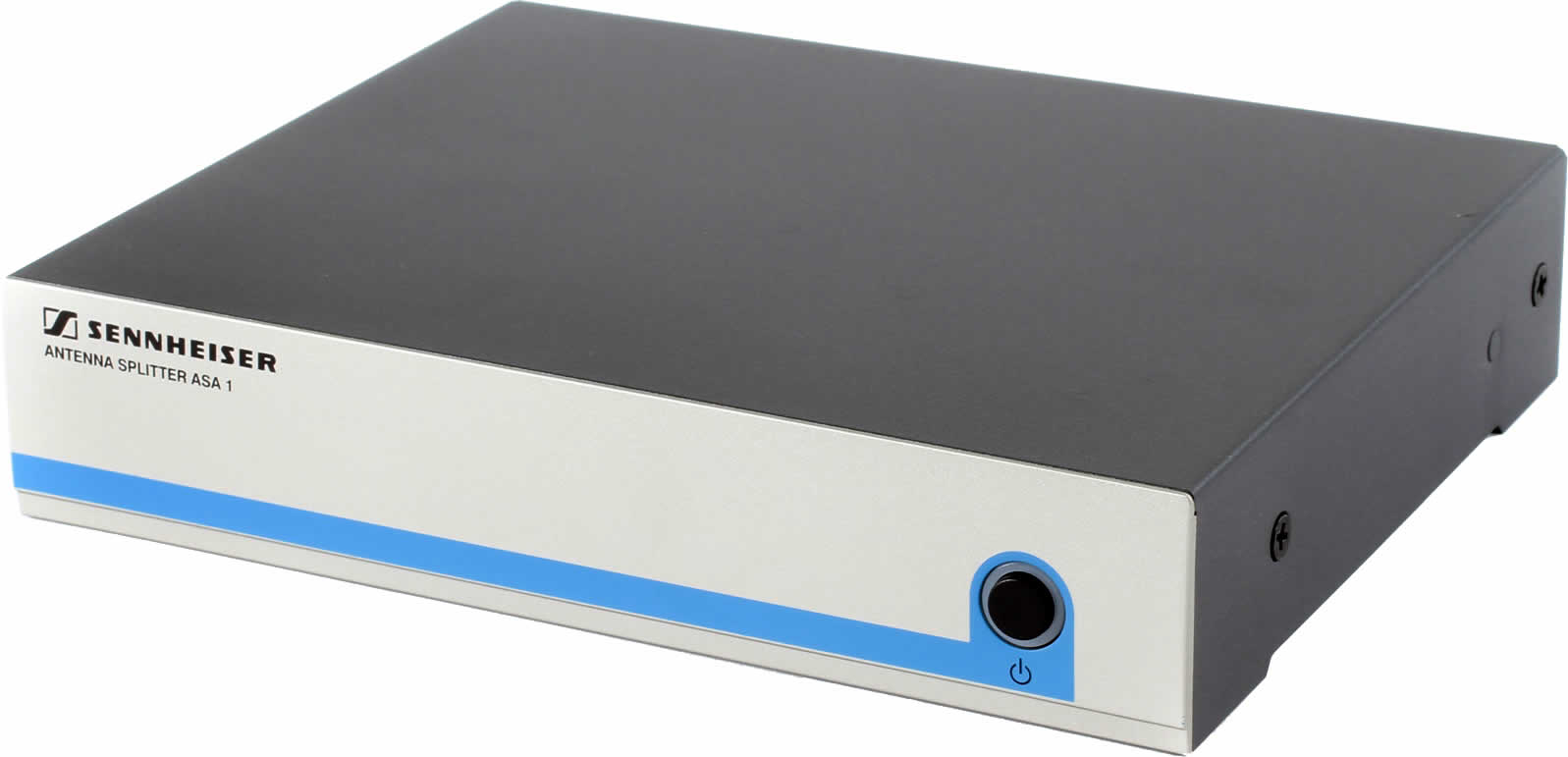

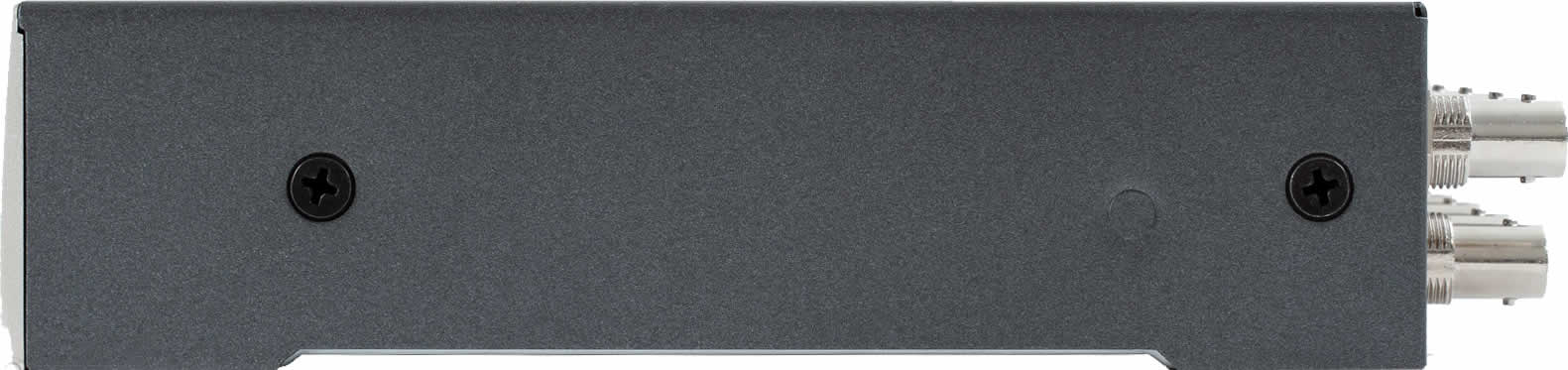

SENNHEISER - ASA 1
Splitter d'antennes actif pour 4 récepteurs série EM100/300/500
Informations
- Codart : ASA1
Propriétés techniques
- Dimensions unitaires : 212 x 202 x 43 mm
- Poids unitaire : 700 g
- Dimensions en flight-case (X1) : … x … x … cm
- Poids en flight-case (X1) : … kg
Documents à télécharger
Détails produit
The Sennheiser ASA 1 Active Antenna Splitter is a rack mountable antenna splitter that allows for up to 4 EW receivers to share one pair of antennas without signal attenuation. If desired, 2 splitters can be linked to create an 8-channel system. This unit requires a NT 1-1 plug-in adapter (sold separately) for operation.
Rack mountable

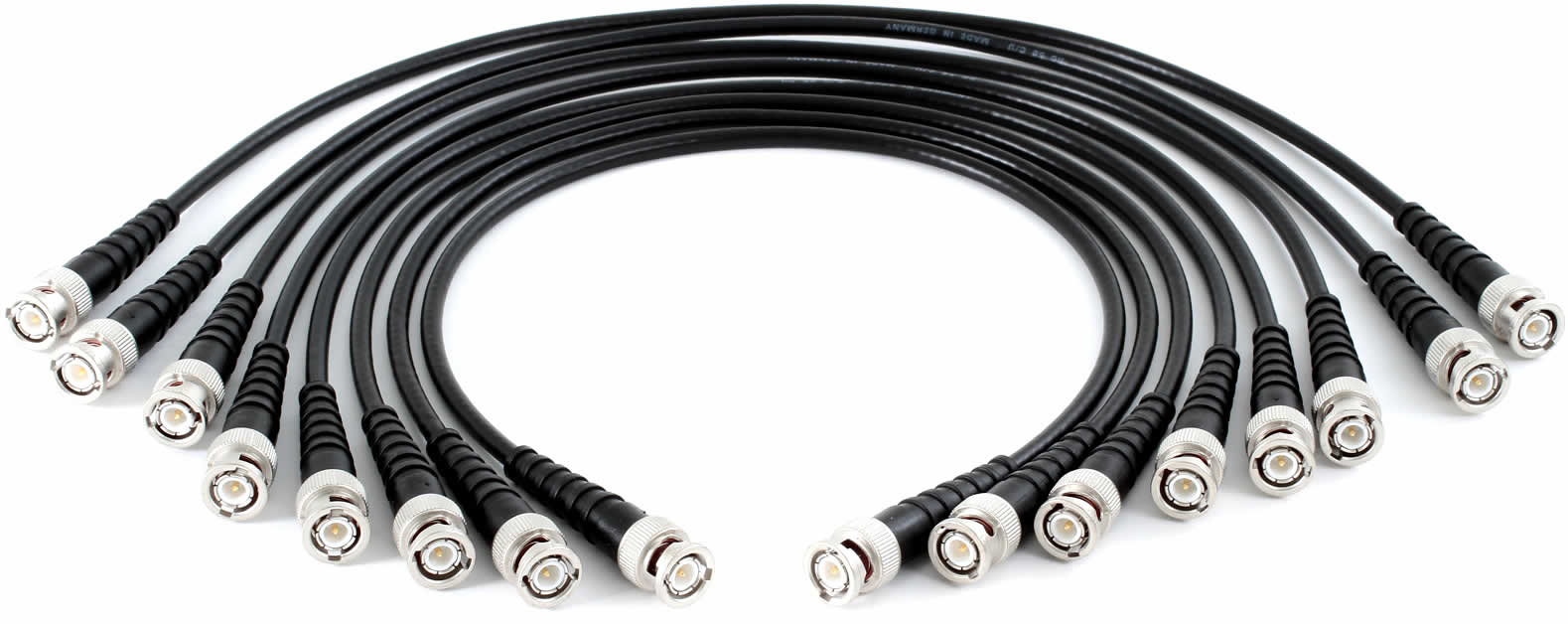

Transmitters receive power via BNC cables eliminating the need for separate power supplies
Two ASA 1 Splitters can be linked together to create an 8-channel diversity system
- Connector
- Input: BNC x 8
- Output: BNC x 2 (RF Out)
- Frequency Range : 500 to 870 MHz (-3 dB)
- Operating Voltage : 13.8 VDC (with NT 1-1 mains unit)
- Current Consumption : max 2.0 A with 4 receivers and 2 antenna boosters
- Supply Voltage
- Supply Voltage of Antenna Booster at ANT RF In A and ANT RF In B: 12 V 130 mA
- Supply Voltage of Receivers at A1 – A4: 12 V (protected from reverse feed), 350 mA
- Relative Humidity : 5 to 95%
- Operating Temperature : 14 to 131°F (-10 to +55°C)
- Storage Temperature : -4 to 158°F (-20 to +70°C)
