Agora - Ghost G2

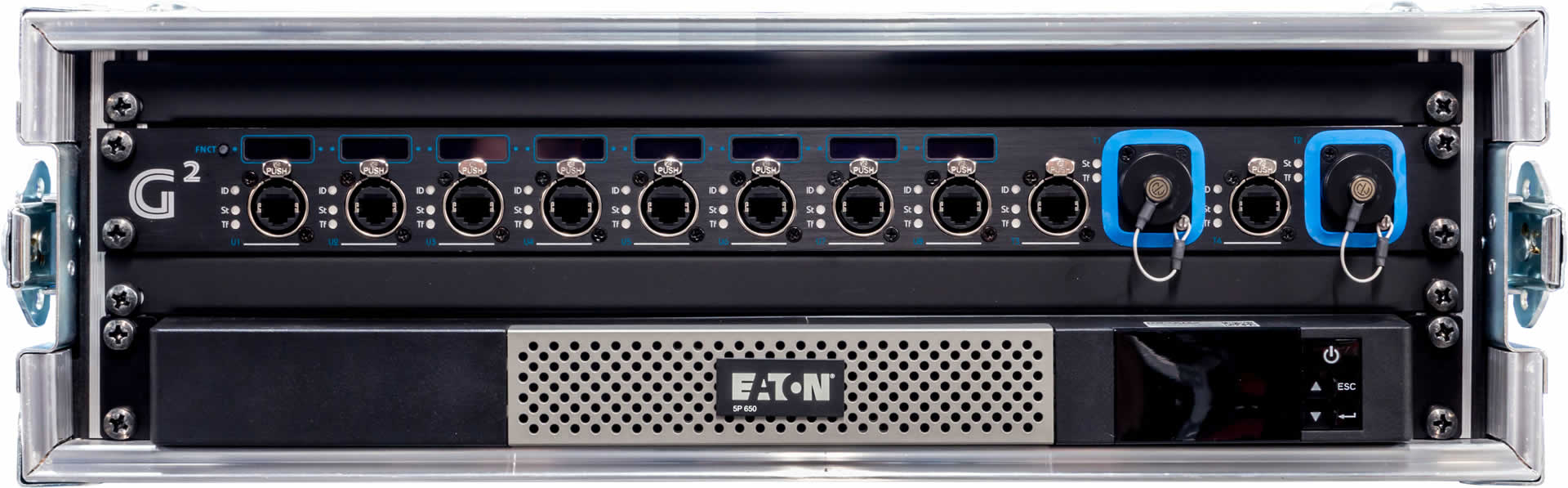

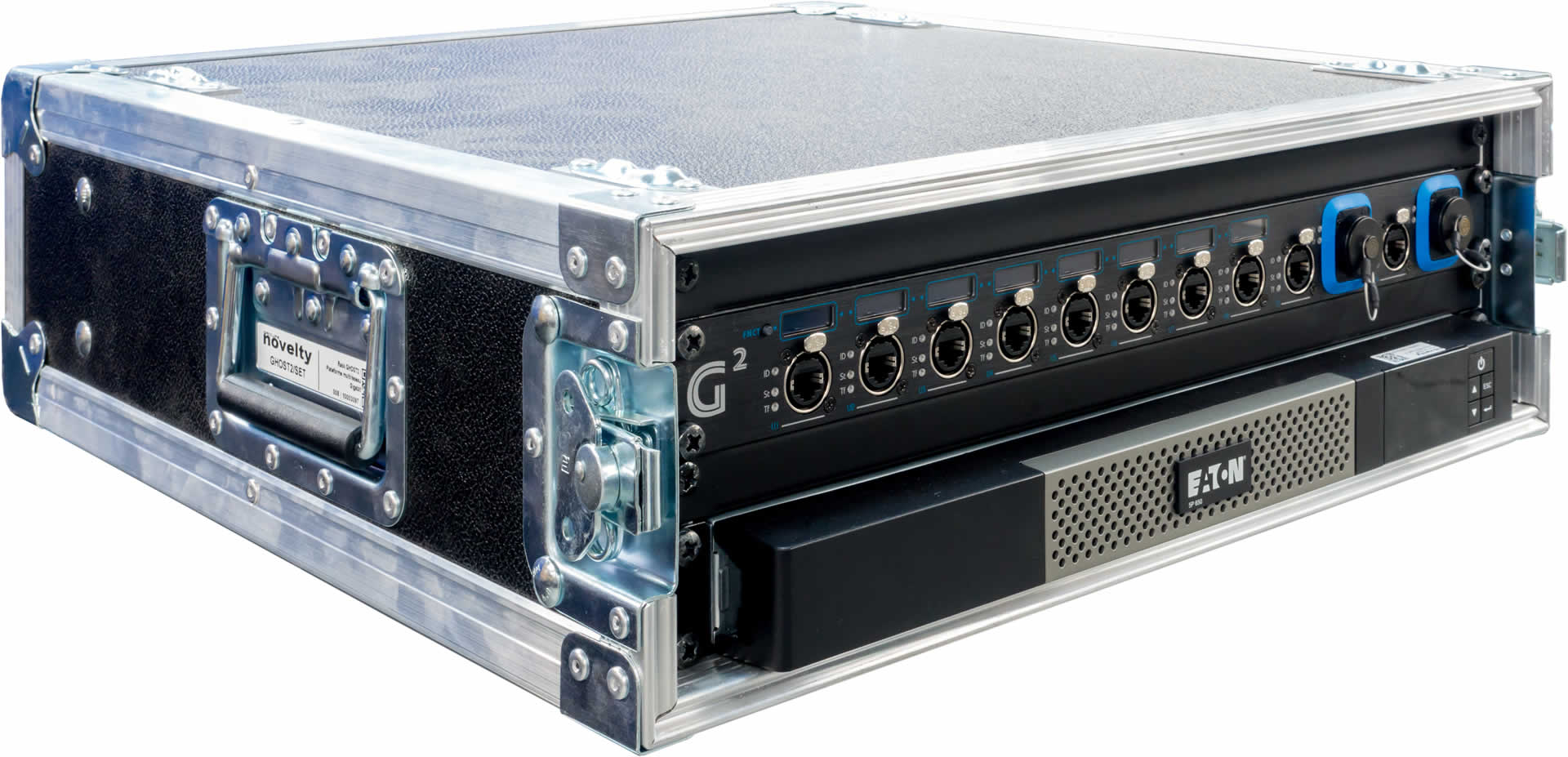

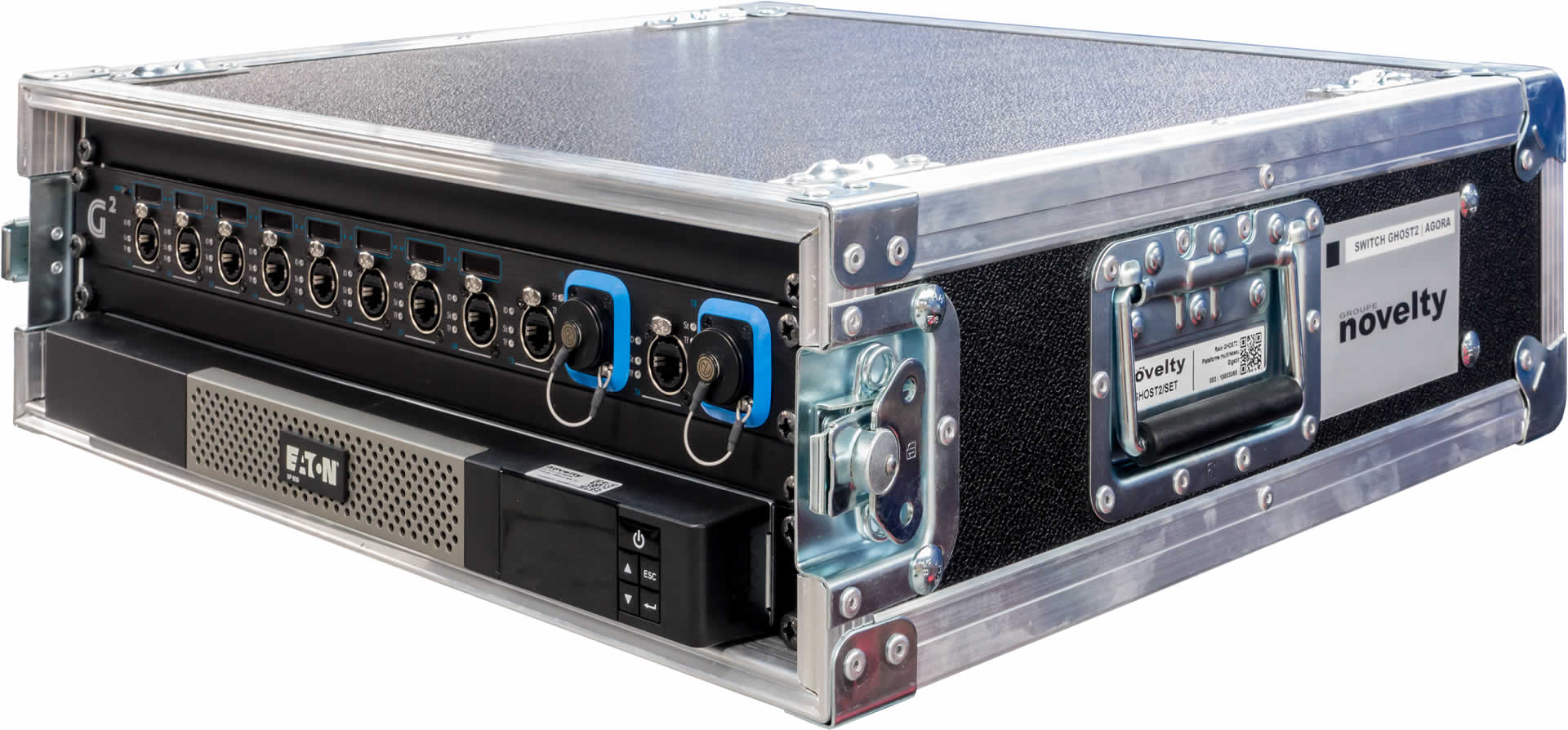

Plateforme multiréseau Gigabit, livrée avec onduleur Eaton 650VA.
Informations
- Codart : GHOST2
Propriétés techniques
- Dimensions unitaires : 442 x 300 x 44,5 mm
- Poids unitaire : 3 kg
- Dimensions en flight-case (X1) : … x … x … cm
- Poids en flight-case (X1) : … kg
Documents à télécharger
Détails produit
OVERVIEW

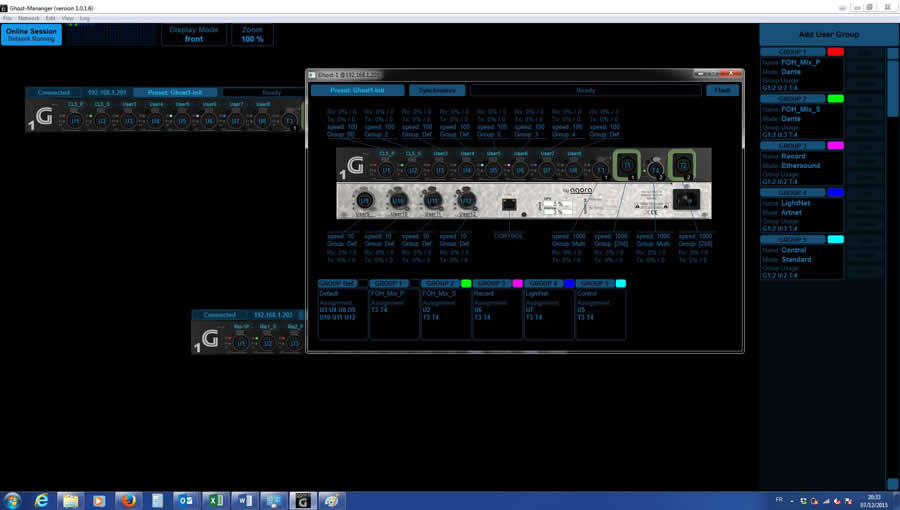

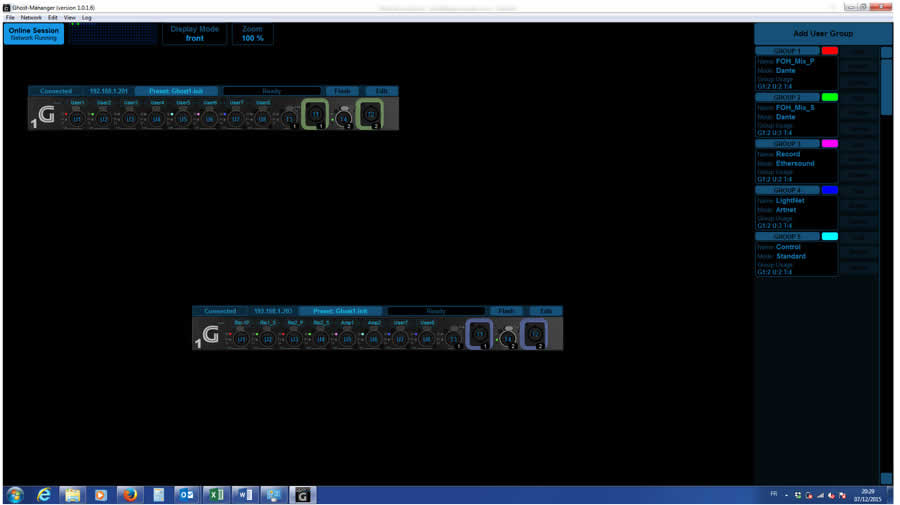

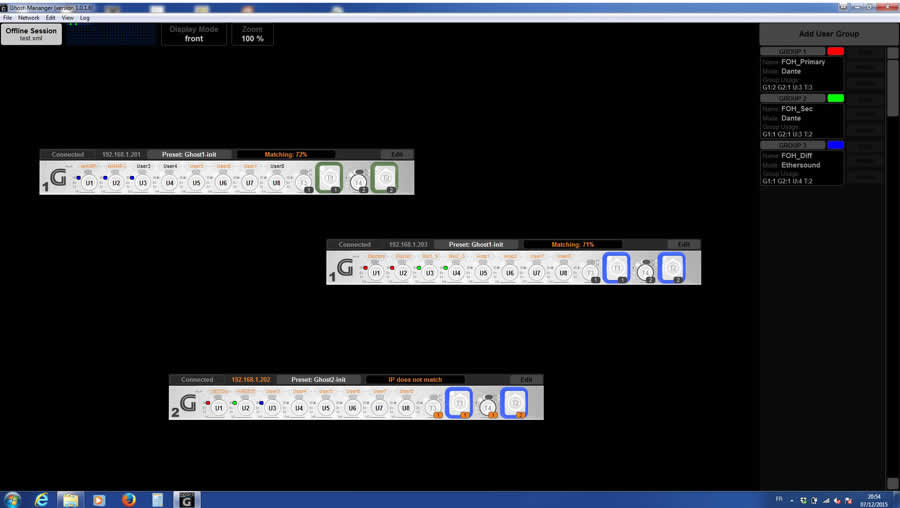

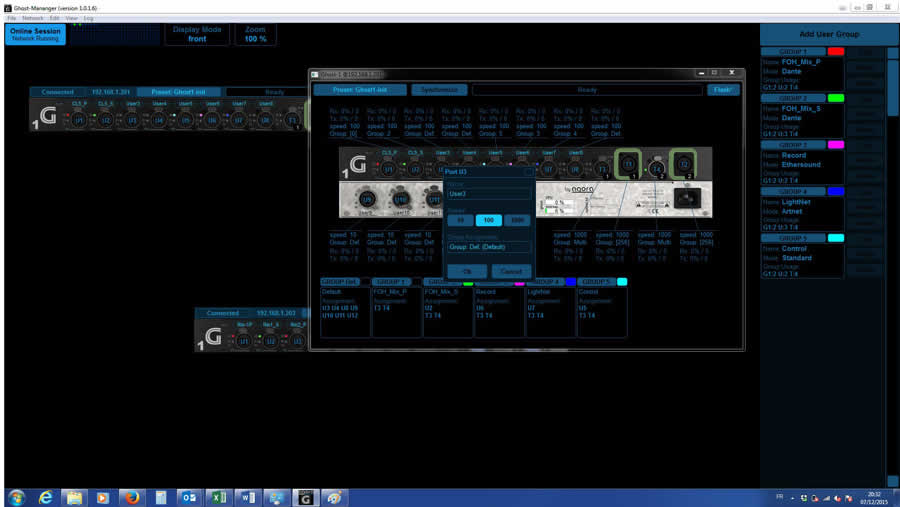

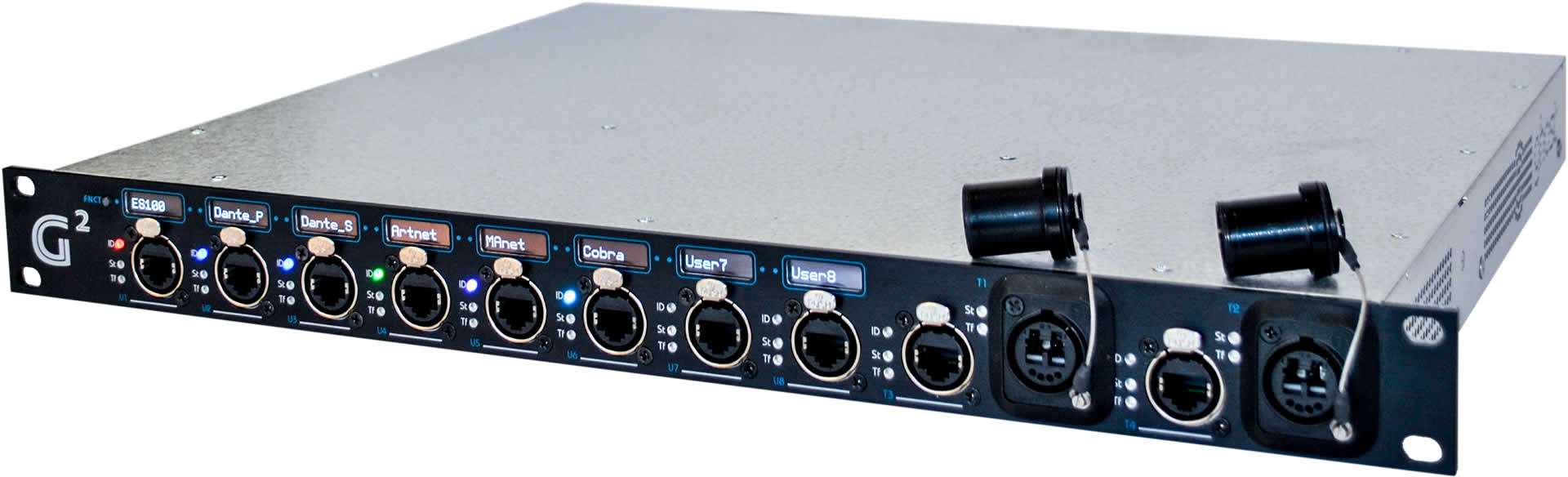

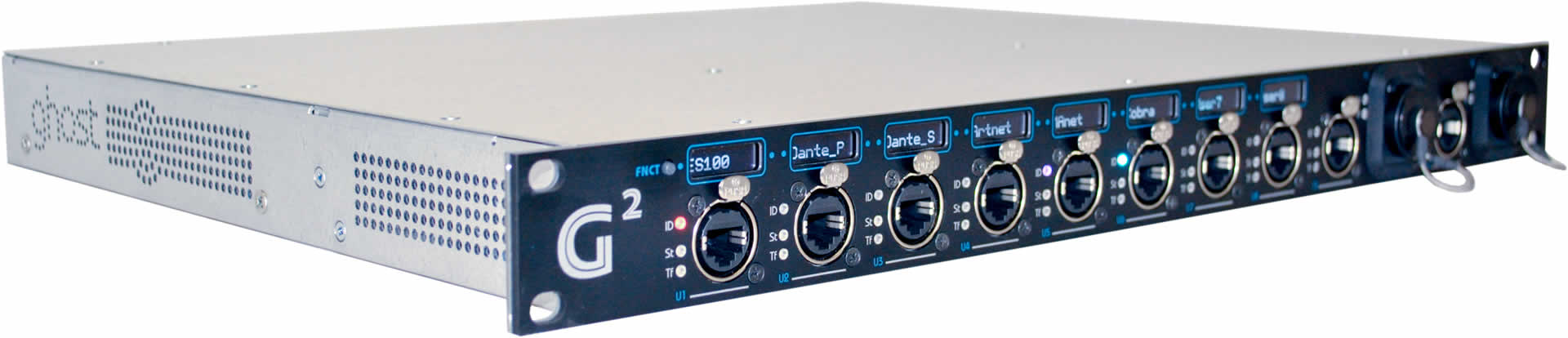

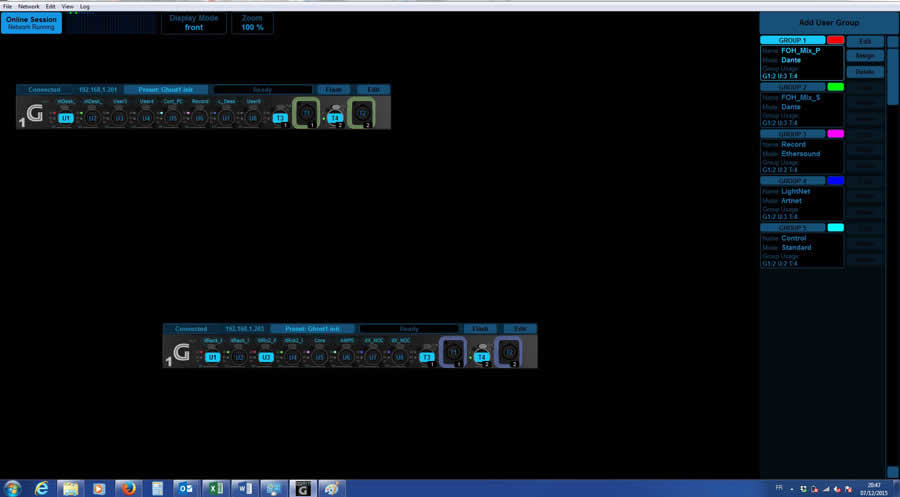

Ghost is a gigabit platform mounted in a 19’’ 1U rack box dedicated to the multiplexing, transport and monitoring of true Ethernet broadcast signals. Ghost integrates a layer 2 programmable switch motherboard, an interface and control front panel board and an extended 120/230 VAC 50/60Hz power supply. Ghost offers a multi services platform to create and manage easily the most complex networks without specific skills in IT technologies. Ghost manager is the dedicated software specially developed for touring and live application. Ghost Manager can manage instantly up to 200 devices connected to the network from a Windows xp to 10 OS PC connected on one device. Ghost networks are fully independents of any protocol and perfectly versatile for each drive data. Ghost systems can be defined like a broadcast medias highway where every kind of vehicle can run freely and firstly on his dedicated part without global traffic jams.
PRINCIPAL FEATURES

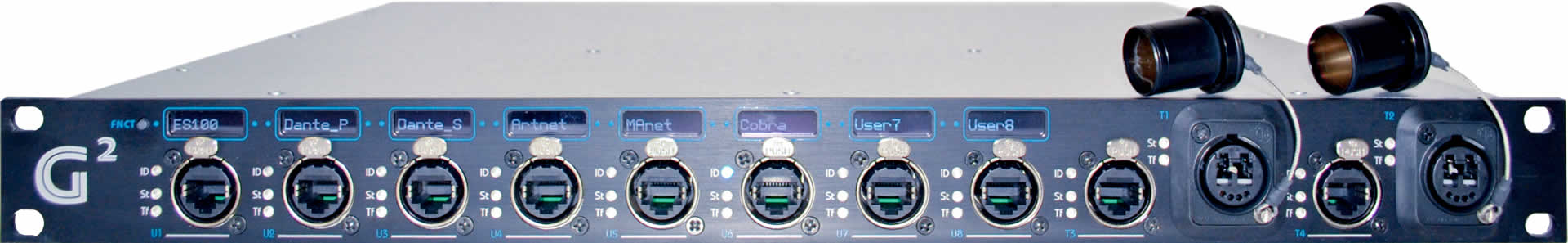

- 12 Ethercon® 10/100/1000 Mbps ports fully independents and assignable.
- 99 Groups can be managed at once.
- 2 Ethercon® 1000 Mbps ports for Ghost linking.
- 2 Opticalcon® Duo 1000 Mbps for Ghost linking.
- Available in single-mode and multi-mode versions.
- 1 x 8 characters LCD screen on each front assignable port.
- Status and traffic LEDS for remote of each ports.
- ID Led on each user port.

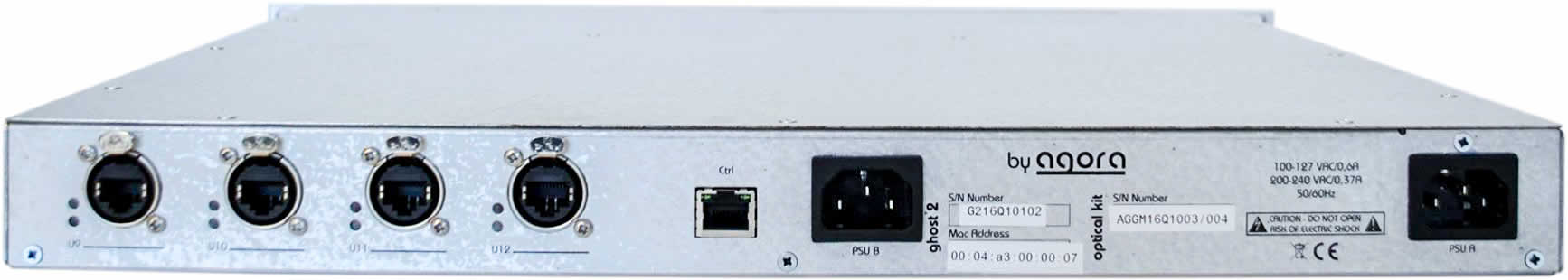

- 1 RJ45 plug on the back panel for monitoring and control.
- Bus, ring, star and hybrid topologies available.
- Ghost Manager software included in the package on an USB stick.
- Redundant power supply is available in option.
COMPATIBLE PROTOCOLS
The list below states at present tested and certified protocols. It can change in the future without hardware modifications. Firmware updates will be released from our web site.
- EthersoundTM
- Dante
- Cobranet®
- Artnet
- TCP/IP remote netwoks
- HDBaseT
APPLICATIONS
Live and touring: Live events and concerts Live broadcast Public address TV and Radio itinerant projects Fixed installations: Stadiums and sport venues Museums, theme parks and entertainment venues Theatres Music and shows venues Corporate boardrooms and buildings. Broadcast and studios: Radio and TV Studios OB Vans Data centers Others: Multi medias broadcasting
