SGM - Q7

RGBW color LED flood blind strobe

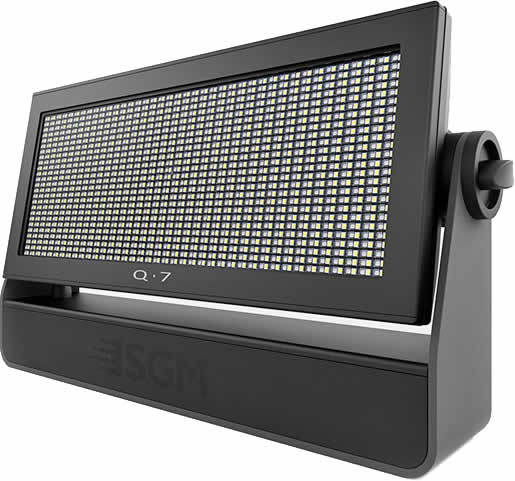

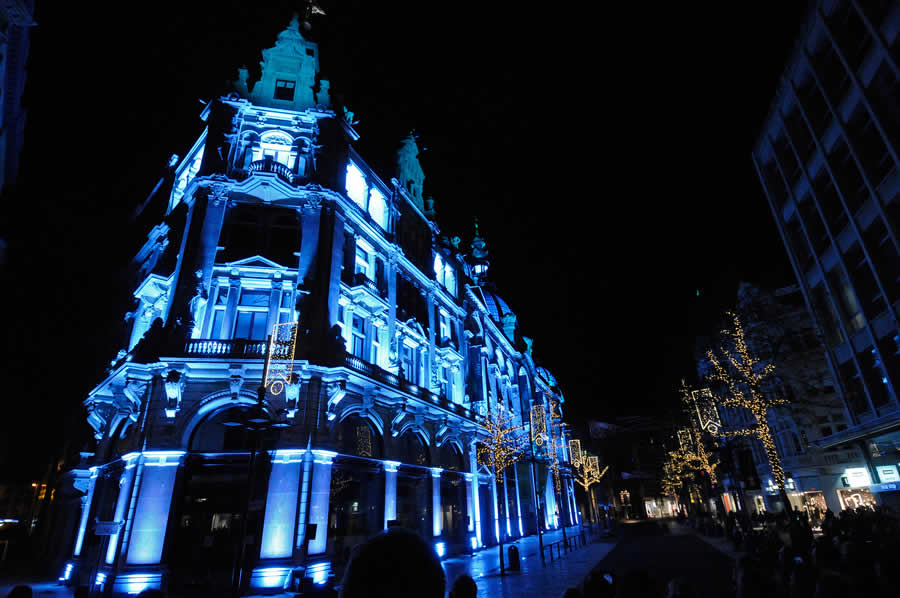

Q-7 is a low-profile and compact RGBW flood, blind and strobe. Containing 2,000 power RGBW LEDs it is a powerful adjustable multi-purpose fixture with a spread angle of 110°. Together with IP65 rating, a high output of 28,000 lumens and having a small physical footprint the Q-7 is an ideal fixture for outdoor use to light up buildings, facades, architectural structures and attractions.

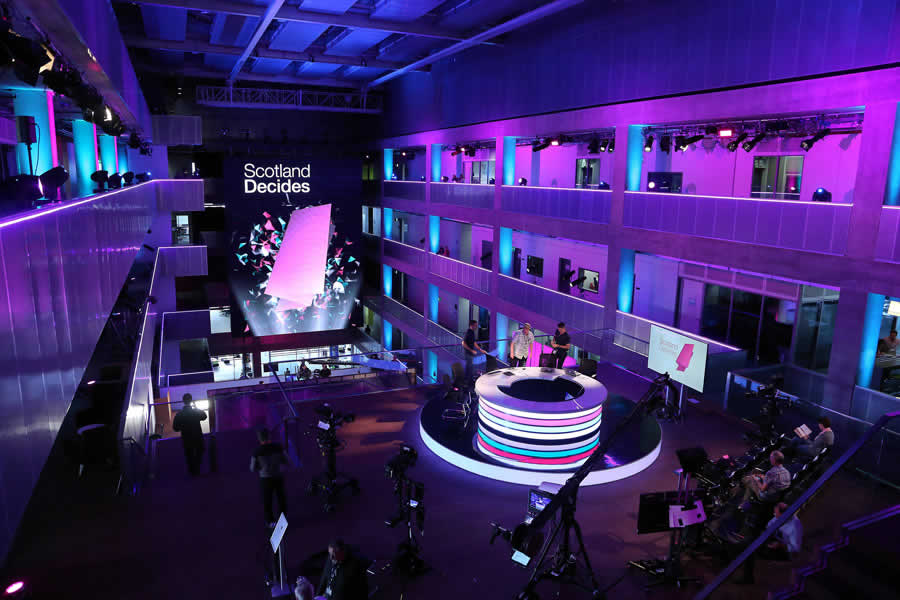

As versatile as it is, the Q-7 is also suitable for indoor applications such as TV studios, theaters and other applications where a flicker-free wide flood of colored light is requested, meanwhile providing the entertainment designs with a flashing bright color strobe effect.

Optics

• Light source : 2,000 x RGBW SMD LEDs (5,700K)
• LEDs expected lifetime : 50,000 hours*
• Lens : 110° fixed

Photometric

• Light output
  • 28,000 lumen (all LEDs on)
  • 3,100 lumen (red)
  • 6,300 lumen (green)
  • 1,500 lumen (blue)
  • 19,000 lumen (white)
• Efficacy : 60 lm/W
• CRI : Min. 80

Features

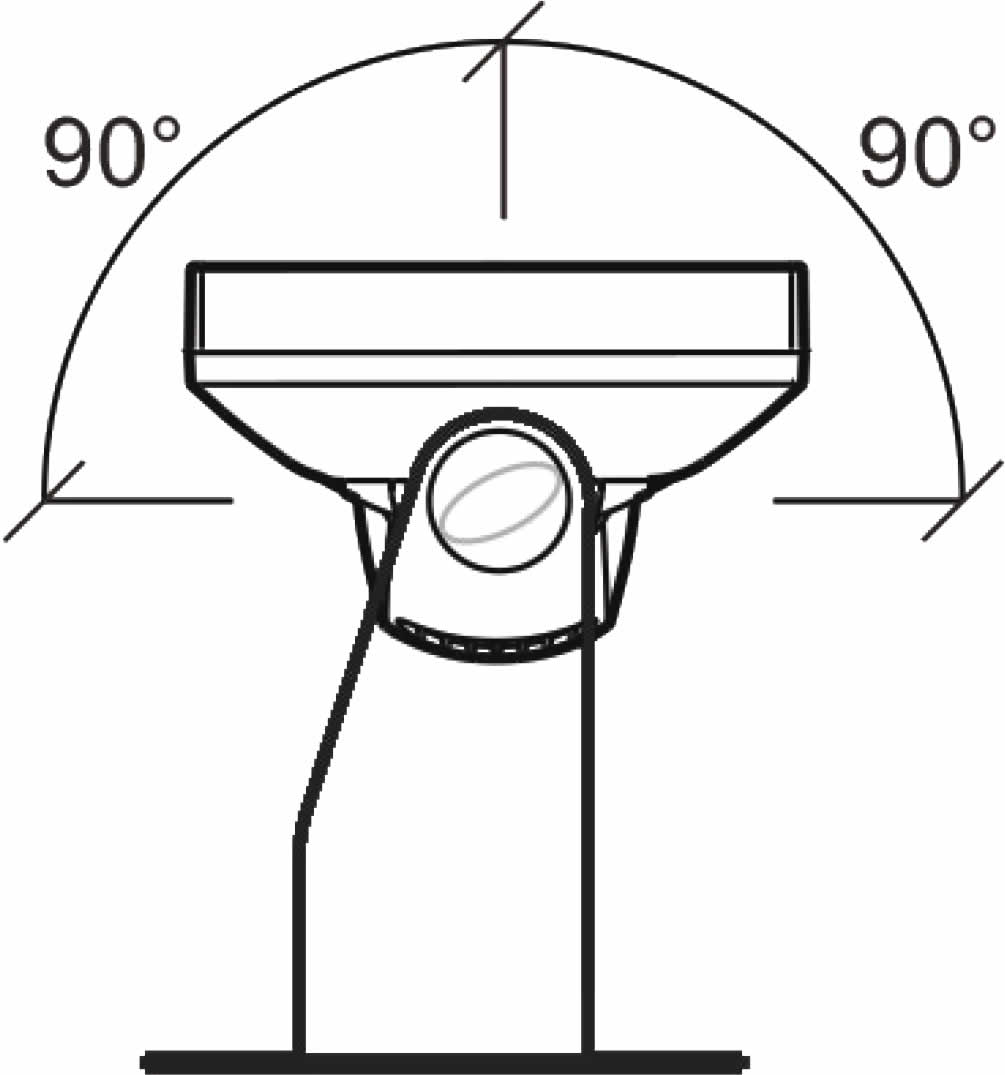

• Pan/Tilt : + / – 90°

Electrical

• AC Power : 208 – 250 V Nominal 50/60 Hz
• Maximum power consumption : 465 W (all LEDs on)
• Typical power consumption: 450 W (all LEDs on)
• Power factor : 0.99 PF (230 V)

Programming and Control

• Protocol : USITT DMX 512 A
• Setting and addressing :
  • Wireless DMX (LumenRadio)
  • RDM
  • Stand alone mode (programmable by RFID)

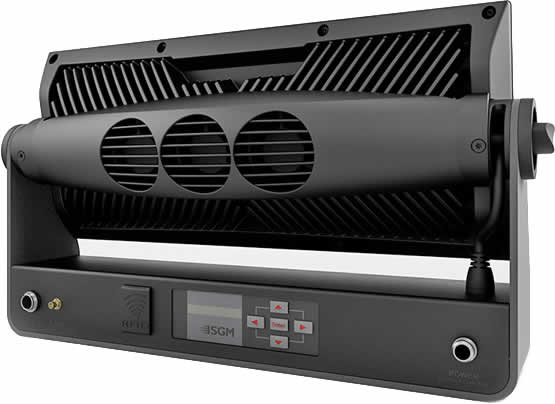

  • Oled graphical display / 4 buttons
  • Software upgradable via Uploader cable (P/N:83062011)
• DMX channels : 4, 6 or 8

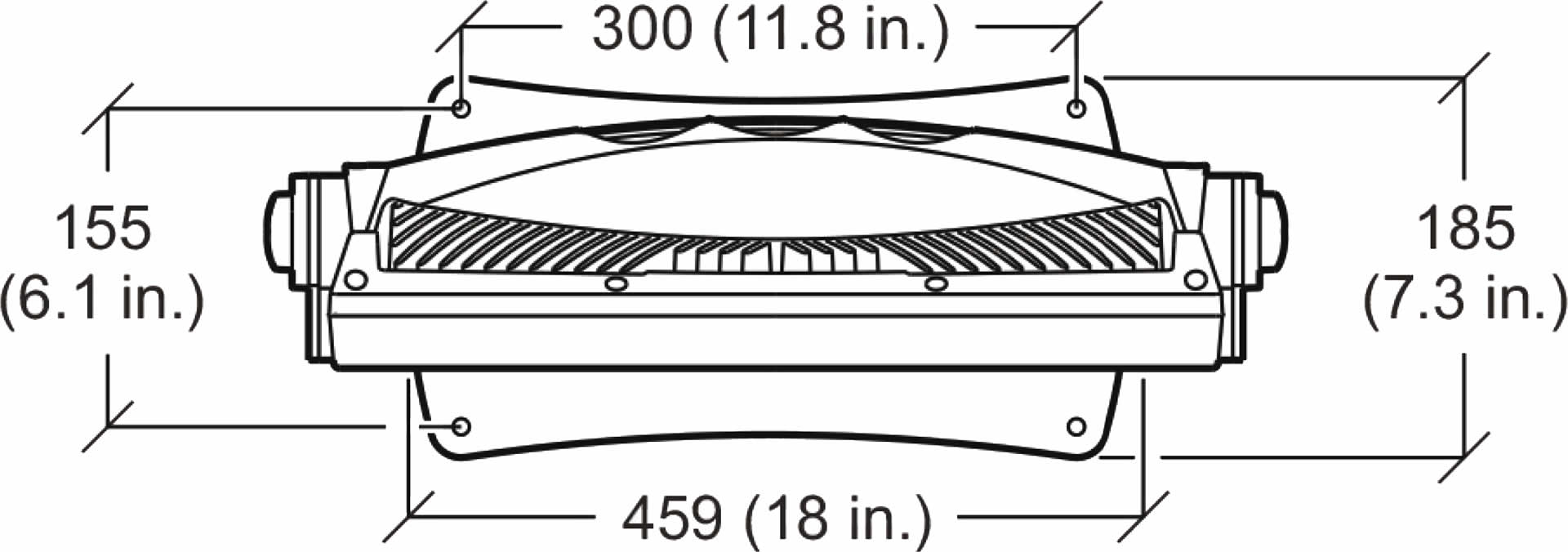

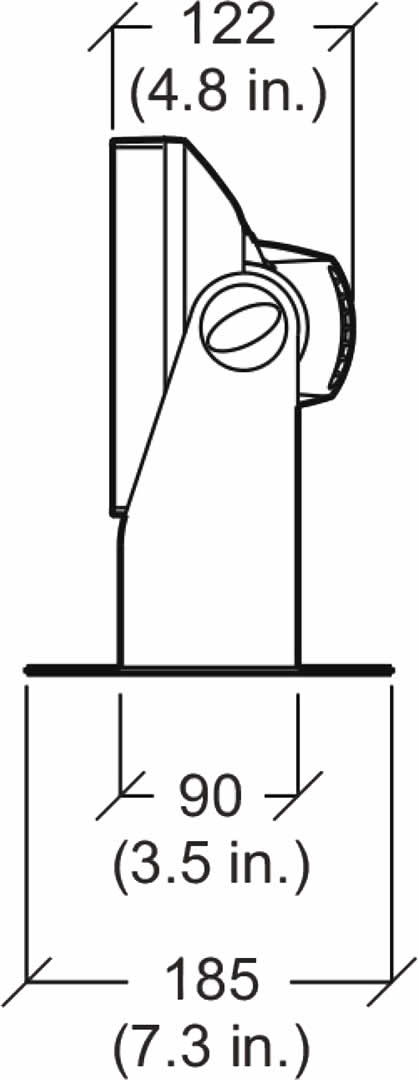

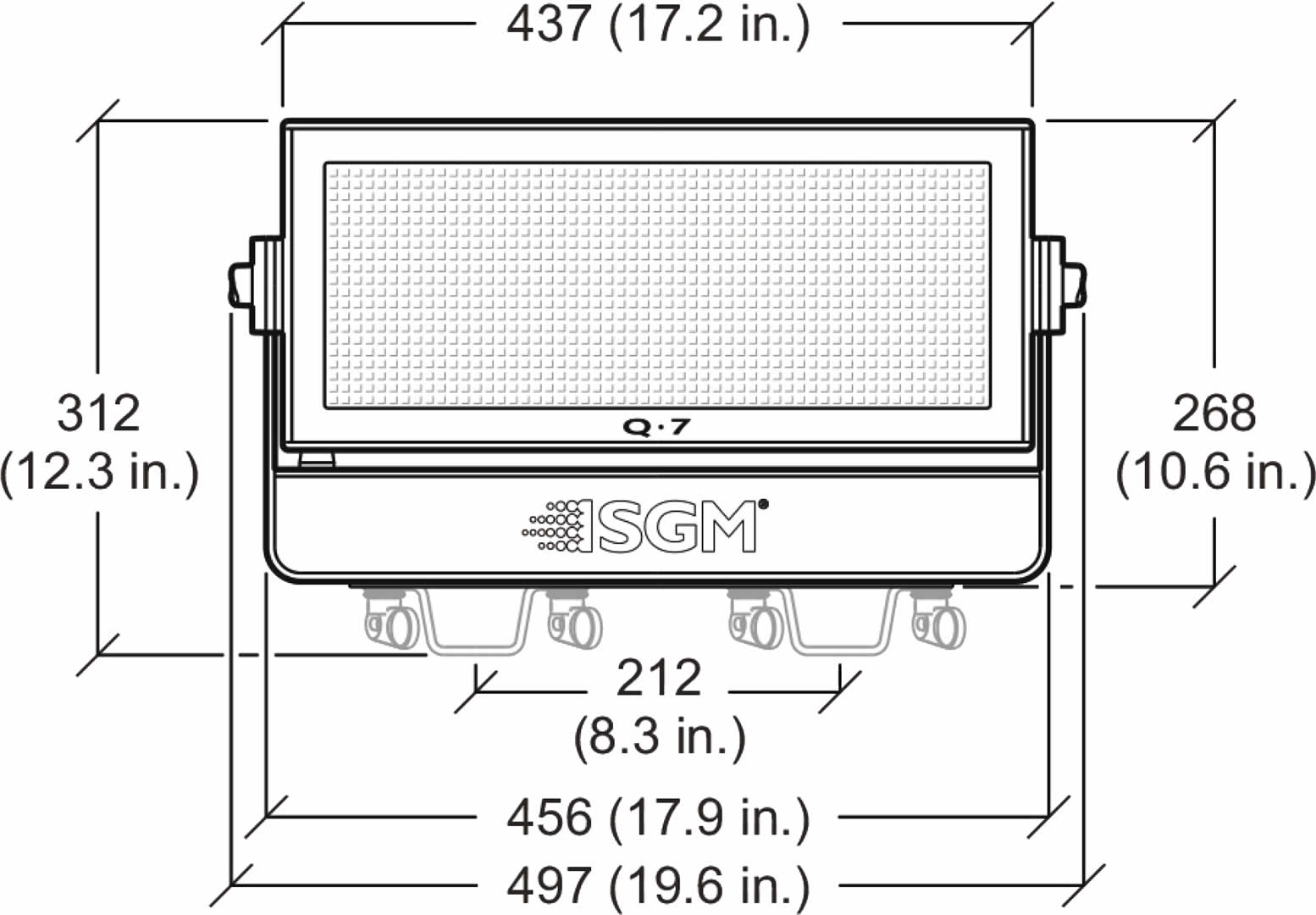

Physical

• Material : Aluminium
• Lens : Tempered glas front
• IP class : IP65

Installation

• Mounting : Any, but facing 100% down for permanent installation
• Rigging possibilities Stand bracket (included) or hanging (Omera Clamps included)
• Safety features : Bottom mount for Safety wire

Thermal

• Temperature range, Operating : -10° – 40°C (-14° – 104°F)
• Temperature range, Start-up : -10° – 40°C (-14° – 104°F)
•  Humidity (max.)? : ?98%

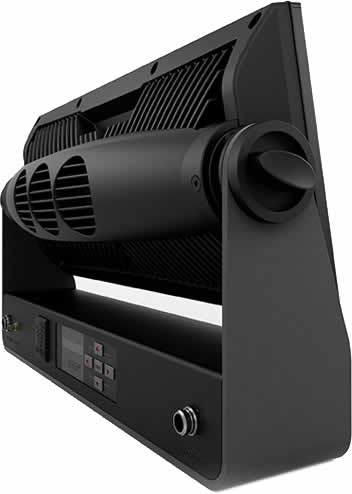

• Cooling : Active, Forced air, temperature-regulated, low noise

Connections

• DMX data in/out : IP65 Neutrik HD locking XLR 5-pin cable 0.5m, for DMX in and out
• Power : Power cable 0.5m with bare ends

Conforms to

• UL Std. 1573
• 2006/95/EC: Low Voltage Directive : EN 60598-1, EN 60598-2-17, EN 62471
• 2004/108/EC: EMC Directive : EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3
• RoHS2 Directive : 2011/65/EU
